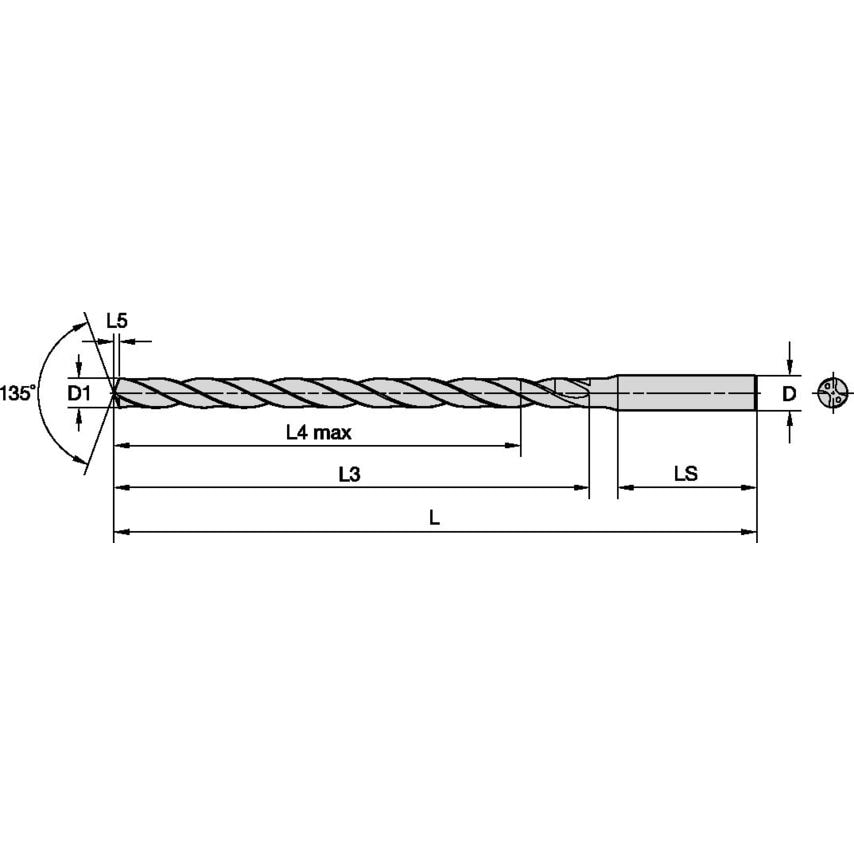

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Helix Angle | 28.630 |
| Functional Length | 274.1170mm |
| Drill Point | 2.883mm |
| Material | Carbide |
| Assembly Length | 231.117mm |
| Adapter / Shank / Bore Diameter | 16.0000mm |
| Drill Depth | 191mm | 191.0000mm |
| Primary Material | Steel |
| Overall Length | 277mm | 277.0000mm |
| Coolant Supplied | Yes |
| Number of Flutes | 2 |
| Flute Length | 224mm | 224.0000mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Finish/Coating | TiAlN |
| Shank Length | 48.0000mm |
| Drill Diameter | 15.5000mm |
| Flute Construction | Helical Flute |
| Unit Measured | Metric |
| Adapter Type | Cylindrical |
| Clamping Length | 43mm |
| Hand Preference | Right |
| Helix Type | Right Hand Helix/Flute |
| MFR Part No. | 4169309 |
| Adapter Style | Straight-Cylindrical |
