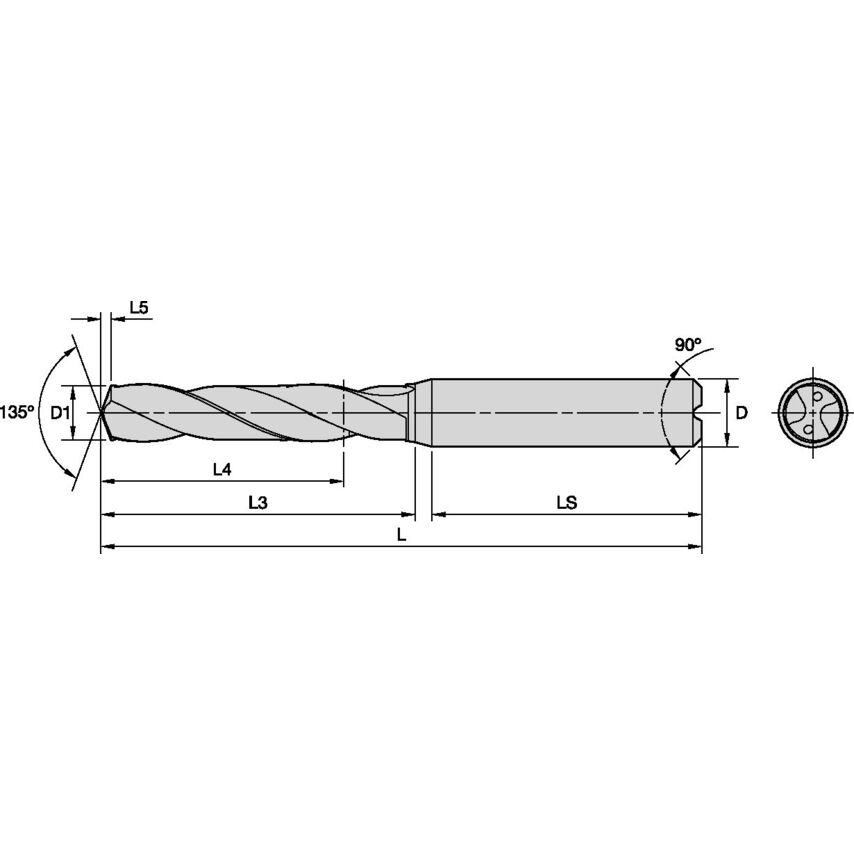

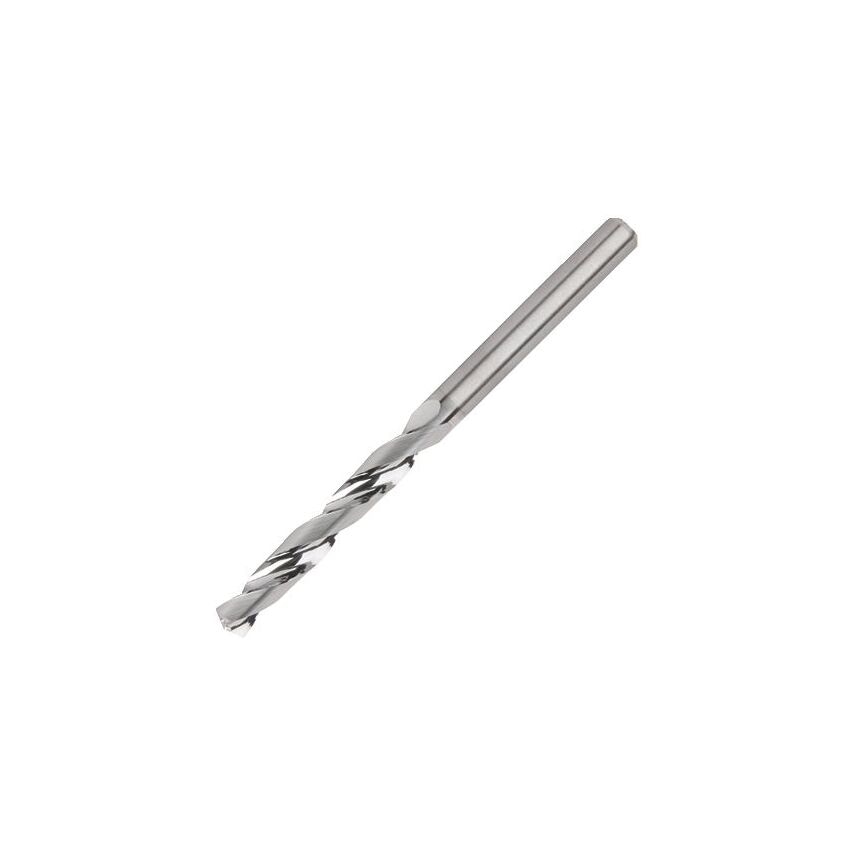

HPS Beyond Drills Aluminum Through CoolantHigh-Performance Solid Carbide Drills
| Unit Measured | Metric |
| Assembly Length | 78.508mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Drill Point | 2.492mm |
| Number of Flutes | 2 |
| Drill Depth | 60mm | 60.0000mm |
| Flute Length | 77mm | 77.0000mm |
| Helix Angle | 28.442 |
| Drill Diameter | 13.5000mm |
| Flute Construction | Helical Flute |
| Functional Length | 121.5080mm |
| Adapter / Shank / Bore Diameter | 14.0000mm |
| Shank Length | 45.0000mm |
| Overall Length | 124mm | 124.0000mm |
| Adapter Style | MQL Drill Shank |
| Finish/Coating | Uncoated |
| Coolant Diameter | 2.0000mm (0.0346in) |
| Material | Carbide |
| Helix Type | Right Hand Helix/Flute |
| MFR Part No. | 5990988 |
| Coolant Supplied | Yes |
| Adapter Type | Cylindrical |
| Primary Material | Non-Ferrous Materials |
| Hand Preference | Right |
