Join
Proto save
£2.97
Loading...
3.00 mm

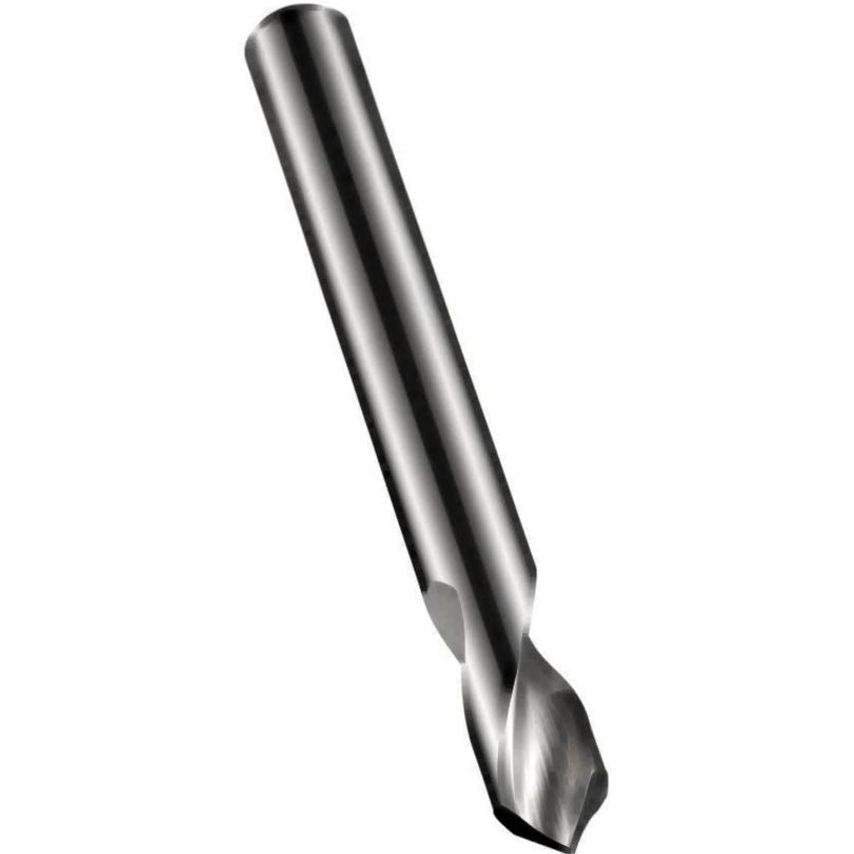

R457 Solid Carbide TiAlN Coated force-X Coolant Feed 3xD Drill Bit with 140 degree 4-Facet split point, designed for high performance drilling
Note: Image is for illustrative purposes only and may differ from the actual product
| Material | HM |
| ISO Category | H | K | M | N | P | S |
| Series | R457 |
| Shank | Cylindrical shank DIN 6535 HA |
| Flute Length | 20mm |
| Unit System | Metric |
| Helix Type | Continuously Thinned Web |
| Product Series | R457 |
| Finish/Coating | TiAlN |
| Shank Diameter | 6mm |
| Drill Diameter Tolerance | M7 |
| Carbide Drill Type | Carbide High Performance |
| MFR Part No. | R4573.0 |
| Material Grade | HM |
| Cutting Direction | Right |
| Number of Flutes | 2 |
| Diameter x Depth | 3xD |
| Point Angle | 140\u00b0 |
| Unit of Measurement | Metric |
| Spiral Form | Continuously Thinned Web |
| Drill Diameter | 3mm |
| Point Type | 4 Facet Split Point |
| Coolant Delivery | Internal |
| Product Type | Drills |
| Flute Type | Spiral |
| Overall Length | 62mm |
| Standards Met | DIN 6537 K |
| Shank Diameter Tolerance | H6 |
