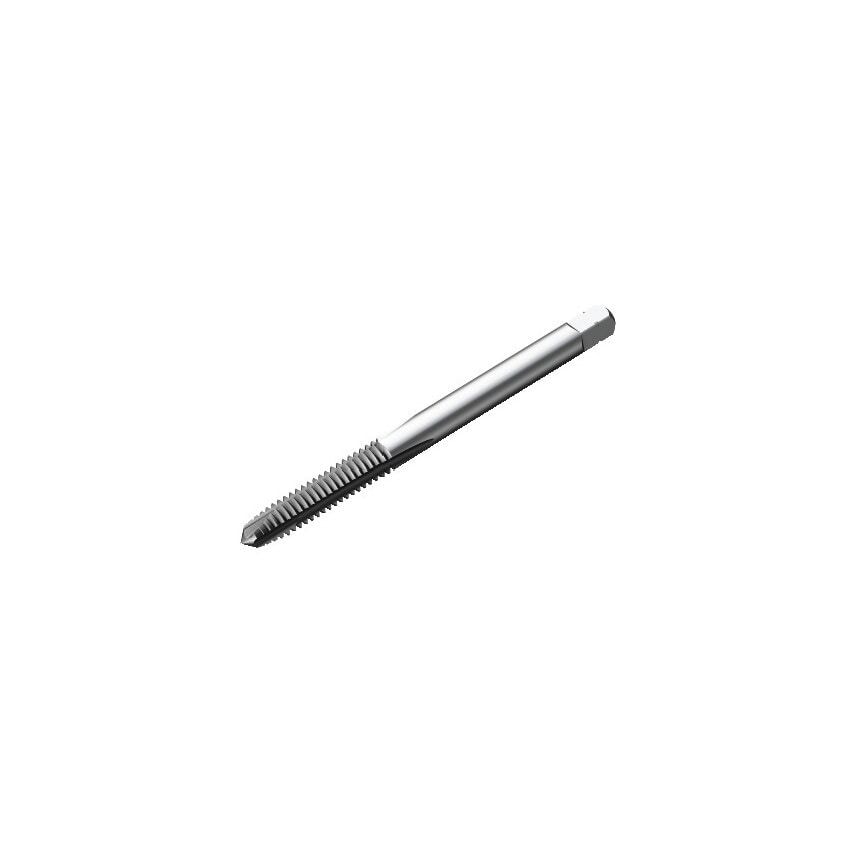

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Usable Length | 25mm |
| Threads Per Inch | 28 |
| Tap Type | Blind Hole |
| Basic Standard Group | DIN 2184-1/ANSI |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 7323220749799 |
| Grade | C150 |
| Finish/Coating | Uncoated |
| Functional Length | 80mm |
| Thread Tolerance Class | 3BX |
| Connection Diameter | 6.477mm |
| Blind Hole Function Property | No |
| Coating Type | Uncoated |
| Thread Diameter Size | UNF 1/4-28 |
| Coating Process Type | UNCOAT |
| Thread Size | 0.255 x 0.191in |
| Through Hole Function Property | Yes |
| Unit Measured | Imperial |
| Coolant Exit Style | 0 |
| CoroPak | 16.1 |
| Thread Pitch | 28 |
