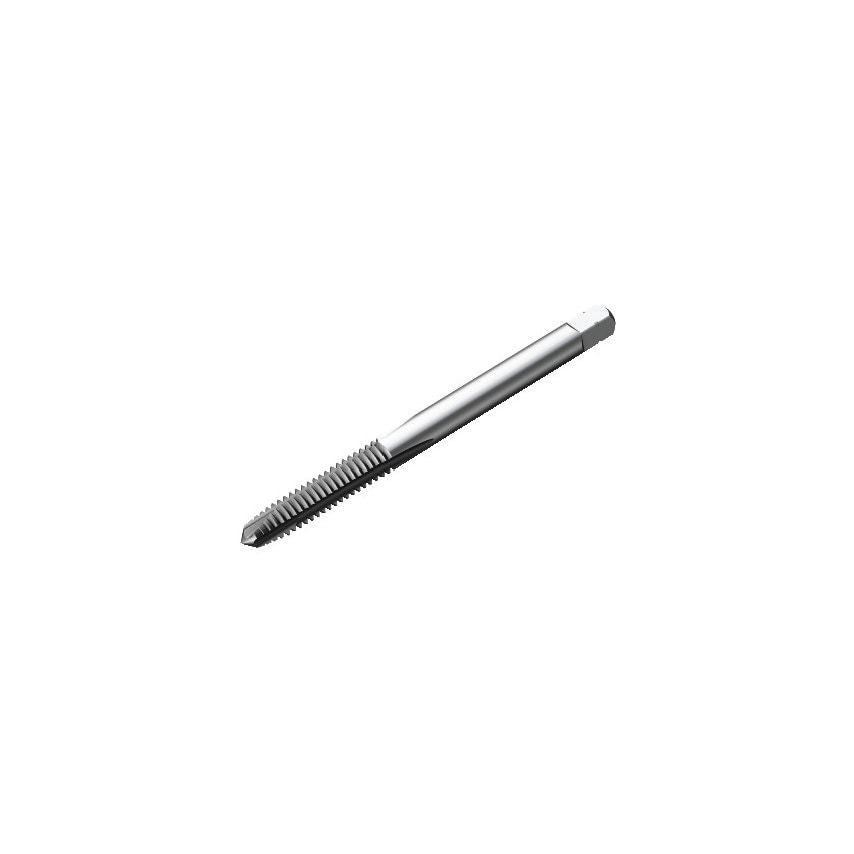

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Finish/Coating | AlCrN |
| Through Hole Function Property | Yes |
| CoroPak | 16.1 |
| Grade | C110 |
| Connection Diameter | 12.192mm |
| Blind Hole Function Property | No |
| Coating Type | AlCrN |
| Usable Length | 55.78mm |
| Basic Standard Group | DIN 2184-1/ANSI |
| Thread Pitch | 18 |
| Coolant Entry Style | Without Coolant |
| Tap Type | Spiral Point |
| Coating Process Type | PVD |
| Unit Measured | Imperial |
| Threads Per Inch | 18 |
| MFR Part No. | 7323220750566 |
| Functional Length | 100mm |
| Thread Tolerance Class | 3BX |
| Thread Diameter Size | UNF 5/8-18 |
| Coolant Exit Style | 0 |
