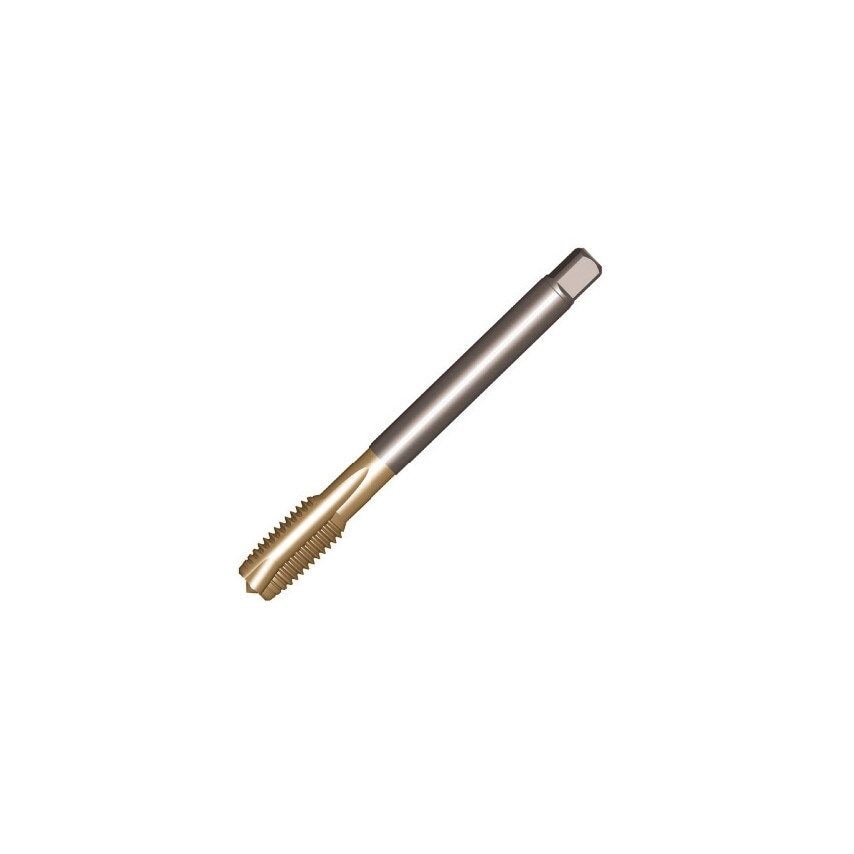

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Thread Tolerance Class | Normal |
| MFR Part No. | 26634998 |
| Coolant Exit Style | 0 |
| Basic Standard Group | DIN 5156 |
| Finish/Coating | Uncoated |
| Tap Type | Spiral Point |
| Connection Diameter | 16mm |
| Usable Length | 80mm |
| Coolant Entry Style | Without Coolant |
| Weight | 0.2kg |
| Threads Per Inch | 14 |
| CoroPak | 14.2 |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Grade | B150 |
| ISO Cutting Tool Material | HSS >=4 |
| Coating Type | Uncoated |
| Coating Process Type | UNCOAT |
| Thread Diameter Size | G 1/2-14 |
| Blind Hole Function Property | No |
| Thread Pitch | 14 |
| Functional Length | 125mm |
