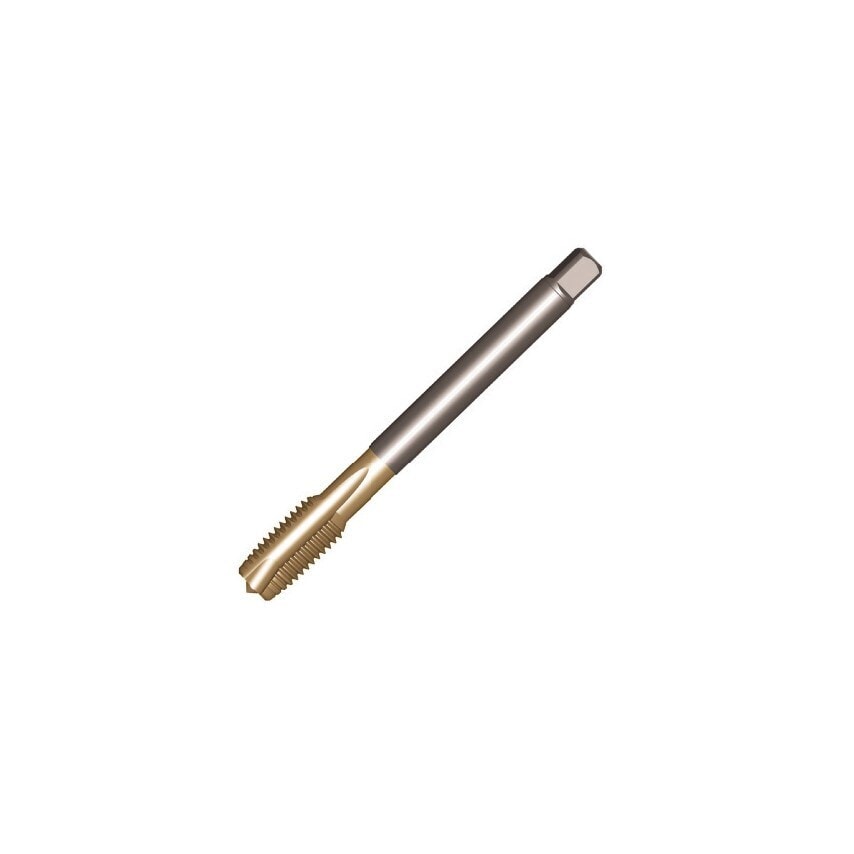

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Product Type | CoroTap 200 cutting tap |
| ISO Cutting Tool Material | HSS >=4 |
| Weight | 0.36kg |
| Thread Pitch | 14 |
| Tap Type | Spiral Point |
| Connection Diameter | 80mm |
| Blind Hole Function Property | No |
| Usable Length | 77mm |
| Functional Length | 140mm |
| Coating Process Type | PVD |
| Unit Measured | Metric |
| CoroPak | 14.2 |
| Thread Diameter Size | G 3/4-14 |
| Through Hole Function Property | Yes |
| Threads Per Inch | 14 |
| Coolant Exit Style | 0 |
| Basic Standard Group | DIN 5156 |
| Finish | AlCrN |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 26635052 |
| Grade | B110 |
| Thread Tolerance Class | Normal |
| Finish/Coating | AlCrN |
| Coating Type | AlCrN |
