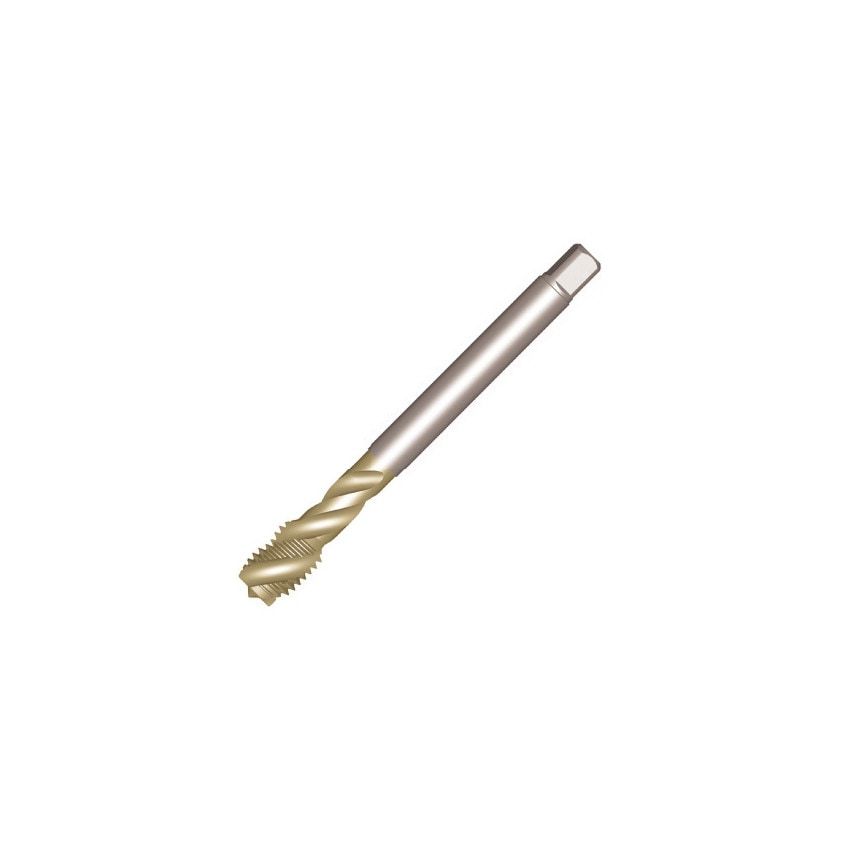

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Unit Measured | Metric |
| Threads Per Inch | 14 |
| Grade | B145 |
| Coolant Exit Style | 0 |
| CoroPak | 14.2 |
| ISO Cutting Tool Material | HSS >=4 |
| Coating Type | FeN |
| Usable Length | 80mm |
| MFR Part No. | 26635197 |
| Thread Diameter Size | G 1/2-14 |
| Connection Diameter | 50mm |
| Functional Length | 125mm |
| Coating Process Type | PVD |
| Basic Standard Group | DIN 5156 |
| Thread Tolerance Class | Normal |
| Blind Hole Function Property | Yes |
| Weight | 0.18kg |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
