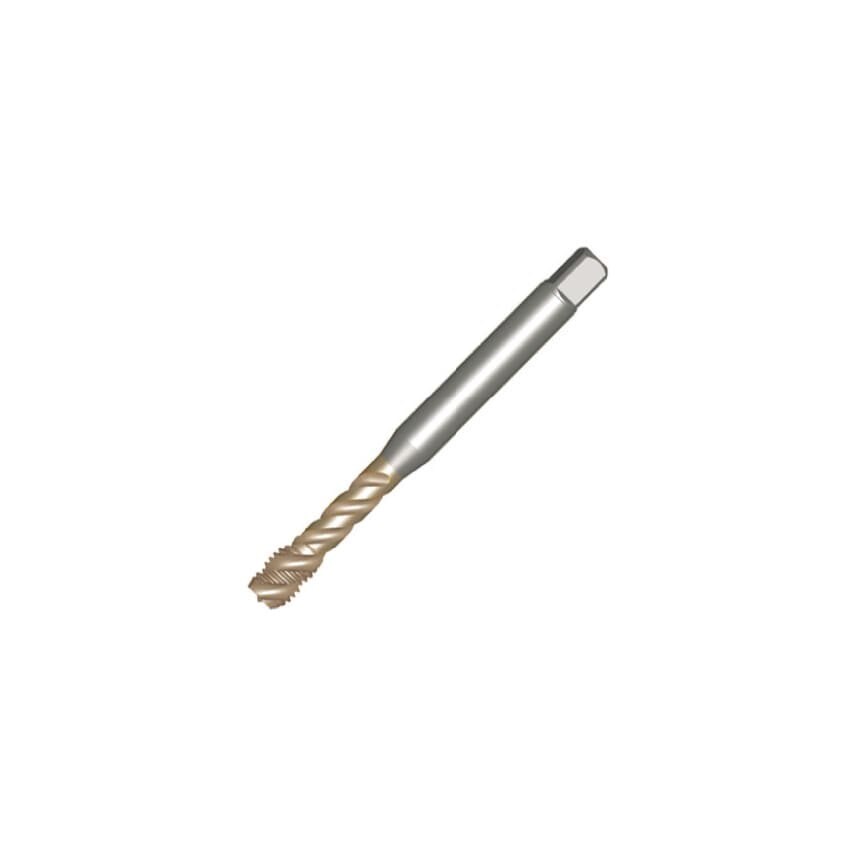

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Usable Length | 82.75mm |
| Connection Diameter | 9mm |
| Coolant Exit Style | 0 |
| Coating Type | Uncoated |
| Thread Tolerance Class | 2B |
| Thread Diameter Size | UNC 1/2-13 |
| Unit Measured | Metric |
| Coating Process Type | UNCOAT |
| Functional Length | 110mm |
| Basic Standard Group | DIN 2184-1 |
| CoroPak | 14.1 |
| Grade | C150 |
| Through Hole Function Property | Yes |
| Blind Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 26539181 |
| Threads Per Inch | 13 |
