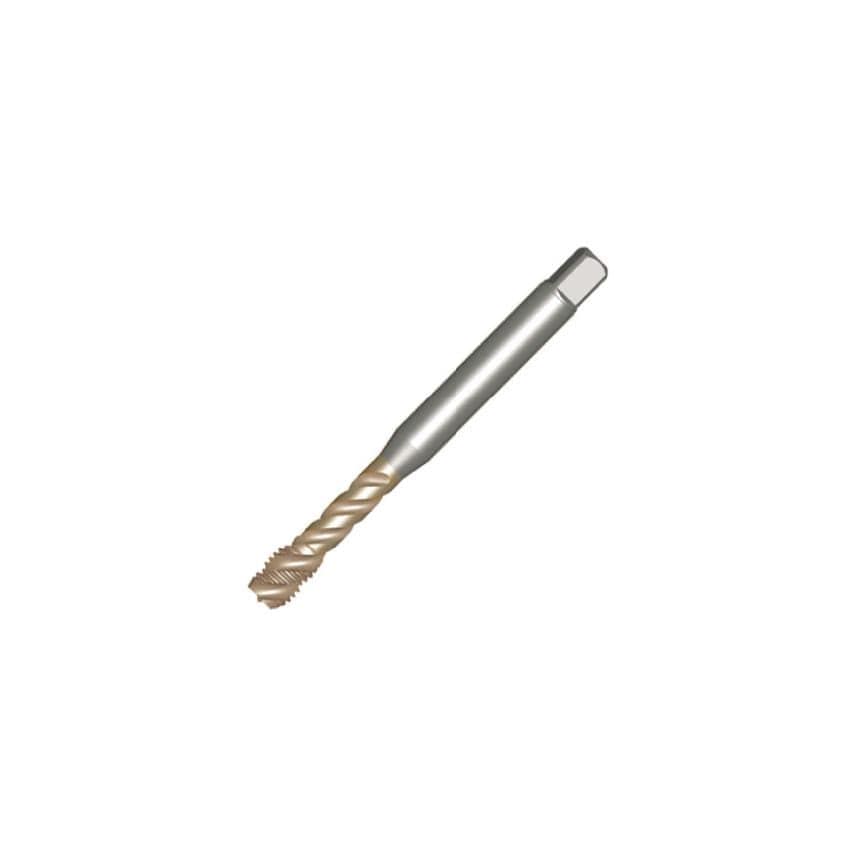

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coating Process Type | PVD |
| ISO Cutting Tool Material | HSS >=4 |
| MFR Part No. | 26539613 |
| Weight | 0.29kg |
| Thread Tolerance Class | 2B |
| Through Hole Function Property | Yes |
| Blind Hole Function Property | Yes |
| Coating Type | AlCrN |
| Grade | B110 |
| Basic Standard Group | DIN 2184-1 |
| Connection Diameter | 63mm |
| Usable Length | 112.75mm |
| Thread Diameter Size | UNC 1in-8 |
| Unit Measured | Metric |
| CoroPak | 14.1 |
| Functional Length | 160mm |
| Coolant Entry Style | Without Coolant |
| Coolant Exit Style | 0 |
| Threads Per Inch | 8 |
