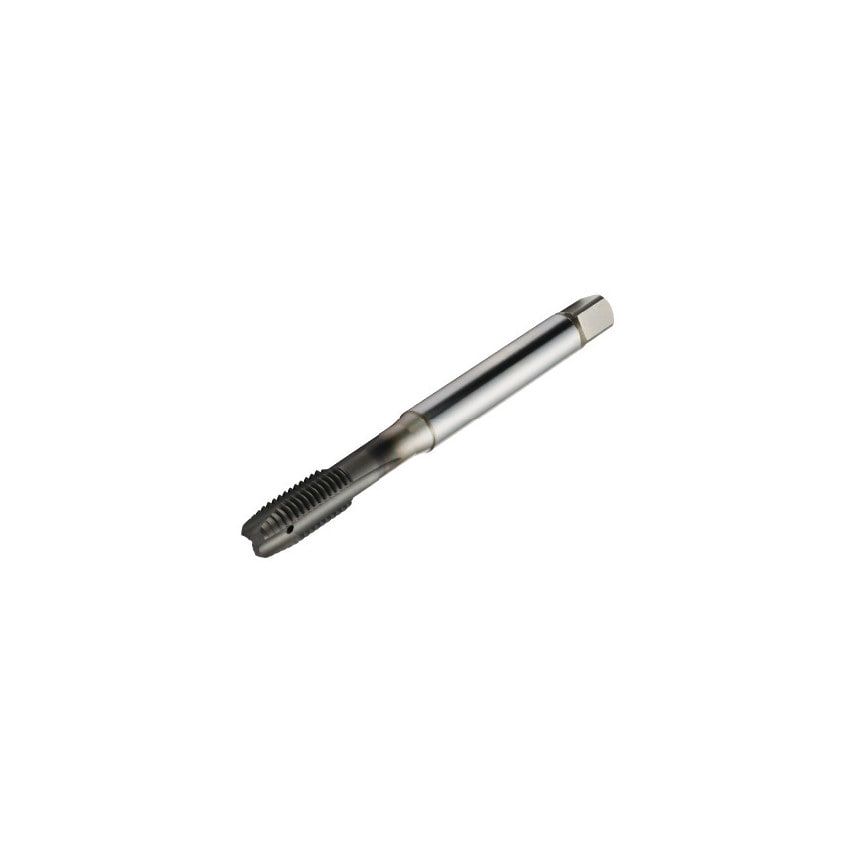

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| MFR Part No. | 26182283 |
| Functional Length | 110mm |
| Connection Diameter | 15.5mm |
| Coating Process Type | PVD |
| Thread Diameter Size | UNF 5/8-18 |
| Unit Measured | Imperial |
| Tap Type | Spiral Point |
| Usable Length | 65.8mm |
| Threads Per Inch | 18 |
| Blind Hole Function Property | No |
| CoroPak | 11.2 |
| Material | HSS-PM |
| Thread Pitch | 18 |
| Thread Tolerance Class | 2B |
| Basic Standard Group | DIN/ANSI |
| Weight | 0.1kg |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| Thread Size | 5/8UNF |
| Coolant Exit Style | 0 |
| Coating Type | TiAlN+WC/C |
