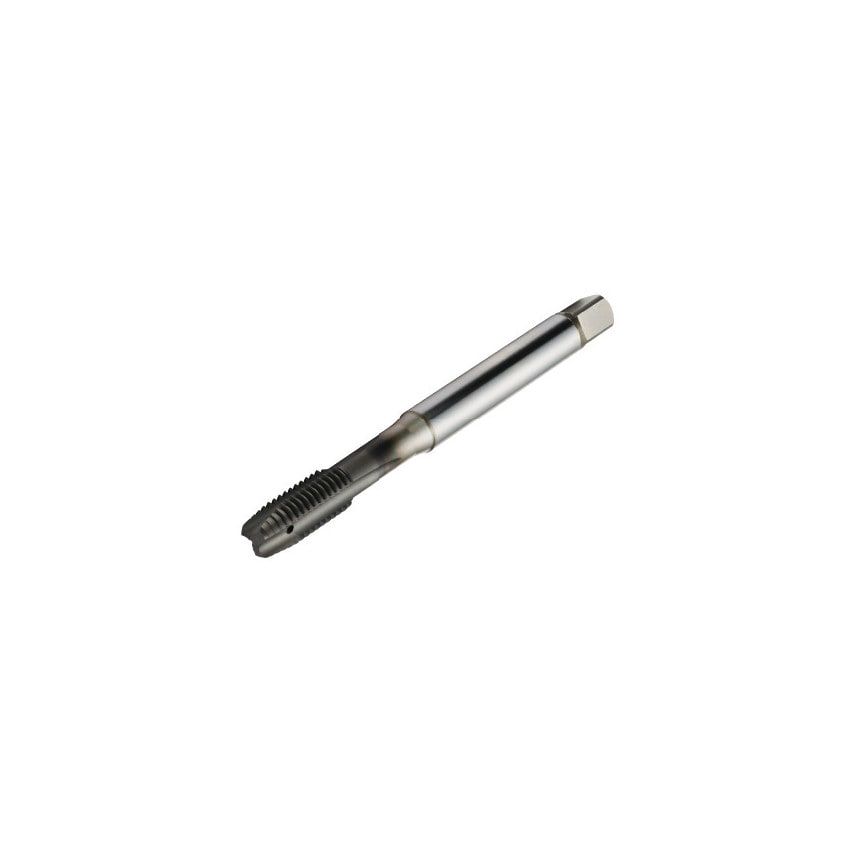

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Tap Type | Spiral Point |
| Blind Hole Function Property | No |
| Thread Tolerance Class | 6HX |
| Thread Pitch | 1.5mm |
| Thread Size | M12 x 1.50 |
| CoroPak | 12.1 |
| Finish | TiAlN |
| Finish/Coating | TiAlN |
| Basic Standard Group | DIN 374 |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Unit Measured | Metric |
| Connection Diameter | 9mm |
| MFR Part No. | 26162565 |
| Thread Diameter Size | MF 12x1.5 |
| Material | HSS-E-PM |
| Coating Type | TiAlN |
| Coolant Exit Style | 0 |
| Functional Length | 100mm |
| Usable Length | 73mm |
| Through Hole Function Property | Yes |
