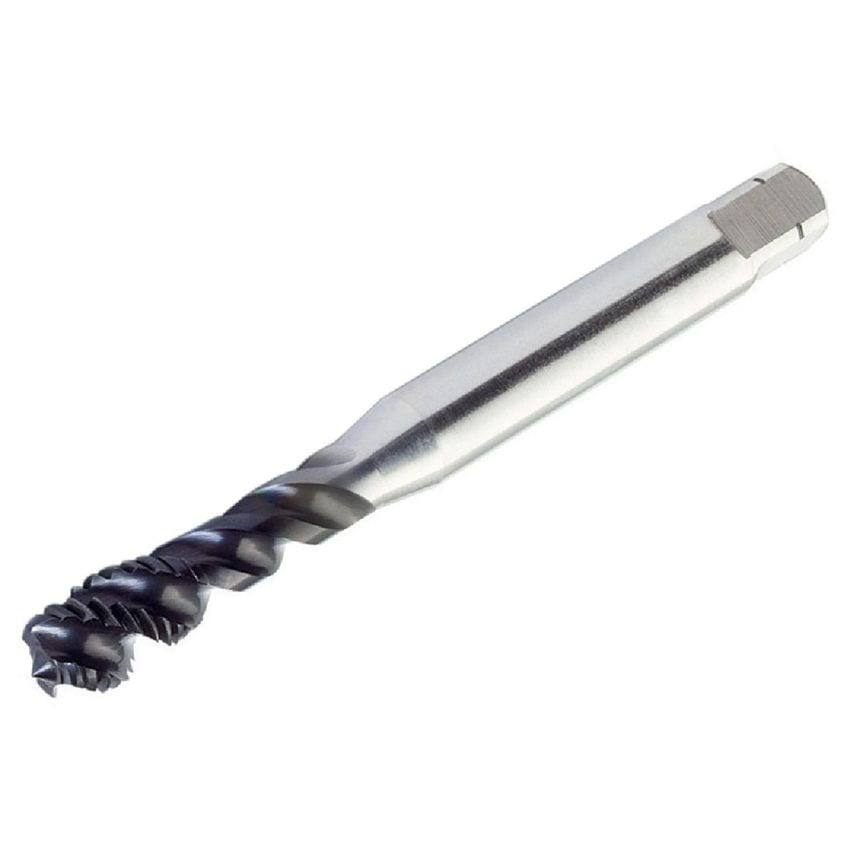

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole

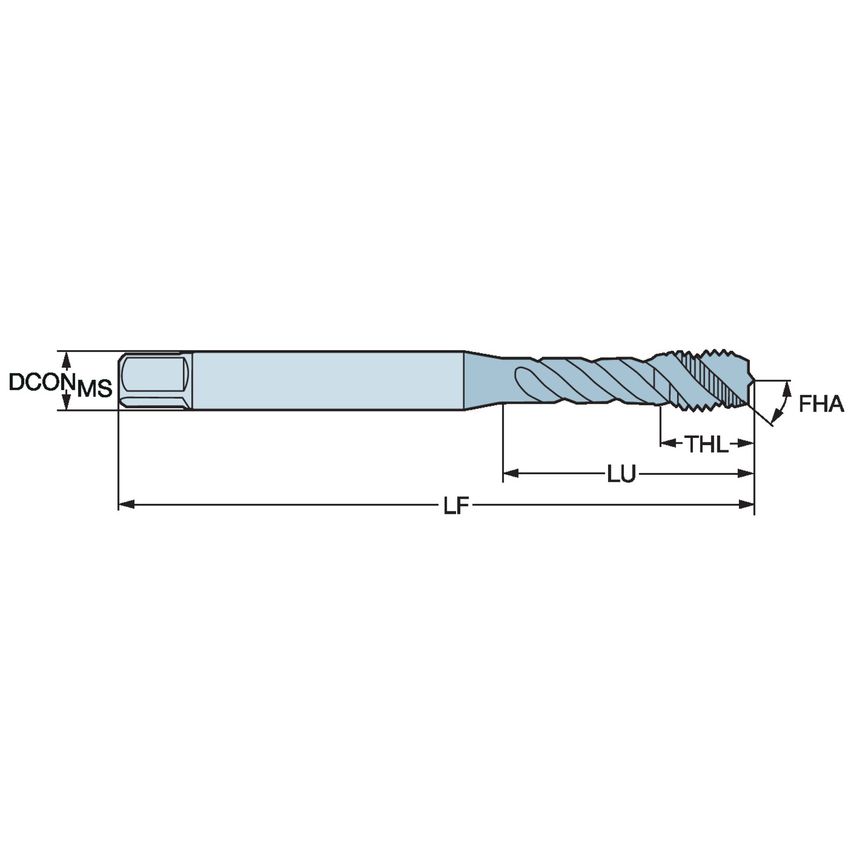

| Connection Diameter | 25.4mm |
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Thread Diameter Size | M 6 |
| Thread Pitch | 1mm |
| CoroPak | 1.95 |
| Coolant Exit Style | 0 |
| Blind Hole Function Property | Yes |
| Basic Standard Group | DIN/ANSI |
| MFR Part No. | 6162345 |
| Weight | 18.5g |
| Coolant Entry Style | Without Coolant |
| Unit Measured | Imperial |
| Functional Length | 80mm |
| Usable Length | 25.58542mm |
| Through Hole Function Property | Yes |
| Thread Tolerance Class | 6HX |
