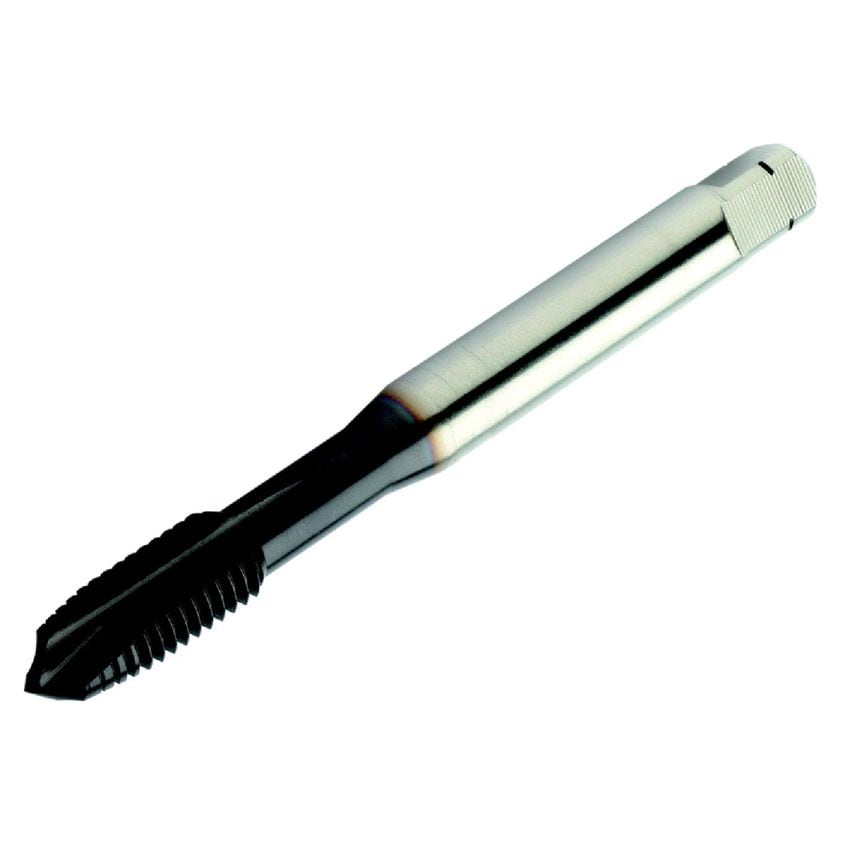

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Coating Type | TiAlN |
| Basic Standard Group | DIN/ANSI |
| Unit Measured | Imperial |
| MFR Part No. | 6162424 |
| Thread Pitch | 1.5mm |

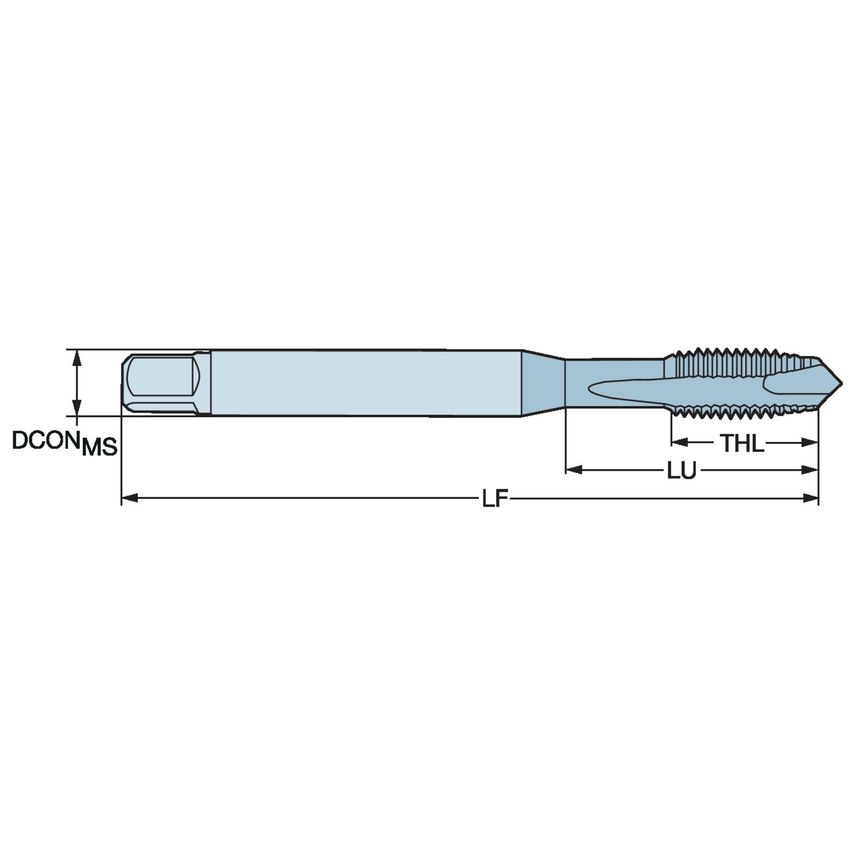

| Usable Length | 84.8212mm |
| Functional Length | 110mm |
| Thread Size | 0.429 x 0.322in |
| Coolant Exit Style | 0 |
| Coating Process Type | PVD |
| Tap Type | Spiral Point |
| Thread Diameter Size | MF 14x1.5 |
| CoroPak | 0.25 |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| Blind Hole Function Property | No |
| Thread Tolerance Class | 6HX |
| Connection Diameter | 19.05mm |
