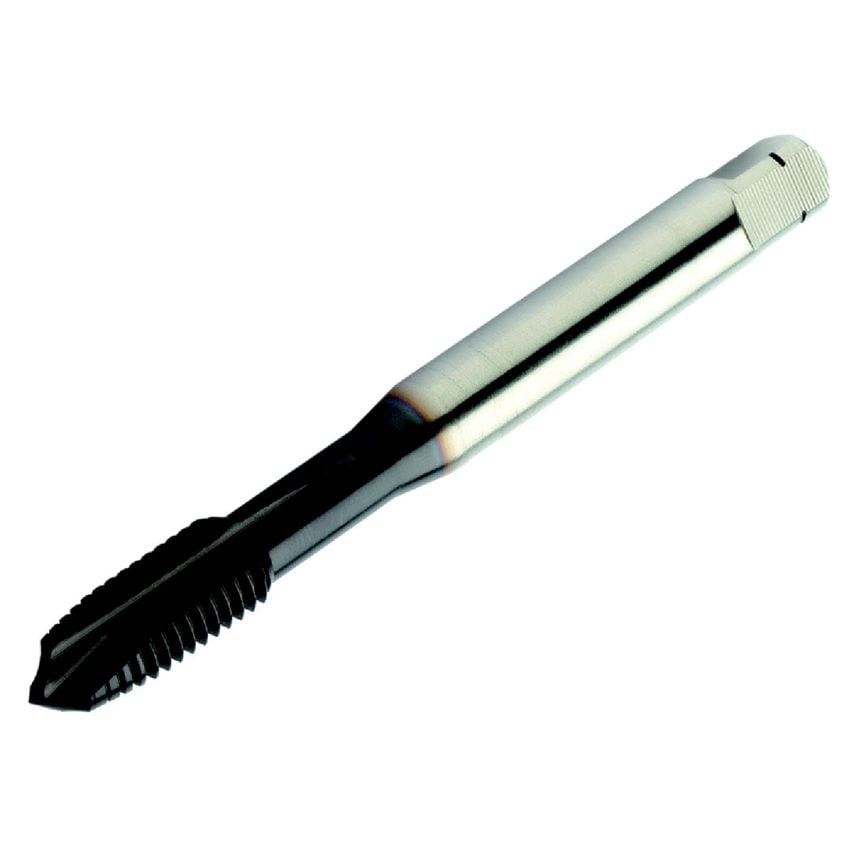

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.

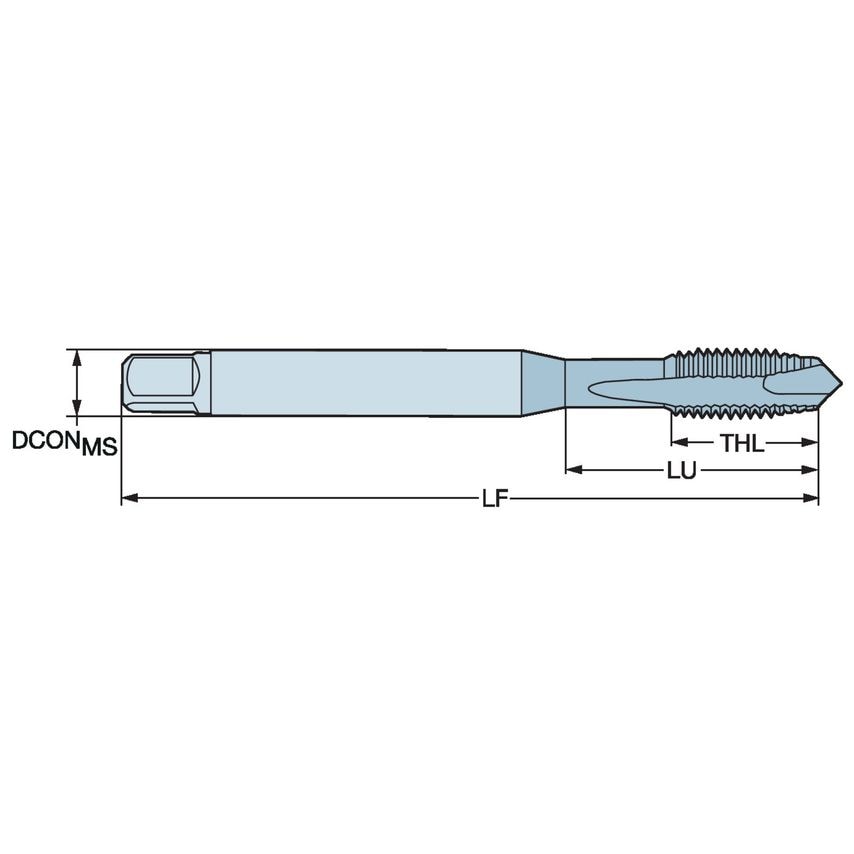

| Connection Diameter | 31.75mm |
| CoroPak | 0.35 |
| Thread Diameter Size | UNC #8-32 |
| Coating Process Type | PVD |
| Unit Measured | Imperial |
| Basic Standard Group | DIN/ANSI |
| Tap Type | Spiral Point |
| Through Hole Function Property | Yes |
| Thread Size | 0.168 x 0.131in |
| Coolant Entry Style | Without Coolant |
| Functional Length | 63mm |
| Blind Hole Function Property | No |
| Usable Length | 21.17598mm |
| Thread Tolerance Class | 2B |
| Coating Type | TiAlN |
| Threads Per Inch | 32 |
| MFR Part No. | 6162431 |
| Tolerance Class Tool | H3 |
| Coolant Exit Style | 0 |
