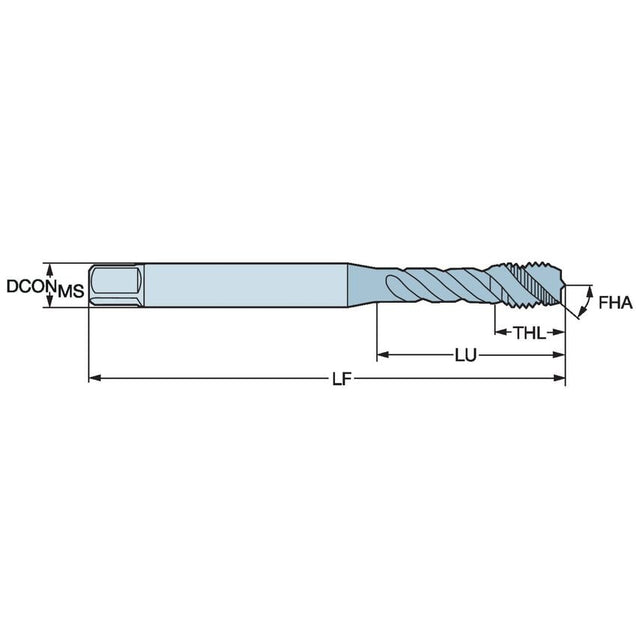

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coolant Exit Style | 0 |
| Tolerance Class Tool | H5 |
| Unit Measured | Imperial |
| Coating Type | TiAlN |
| Thread Diameter Size | UNC 8-32 |
| Basic Standard Group | DIN/ANSI |
| Connection Diameter | 31.75mm |
| Functional Length | 63mm |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 6162481 |
| CoroPak | 1.25 |
| Thread Tolerance Class | 2B |
| Threads Per Inch | 32 |
| Through Hole Function Property | Yes |
| Usable Length | 21.17598mm |
| Blind Hole Function Property | Yes |
| Coating Process Type | PVD |
