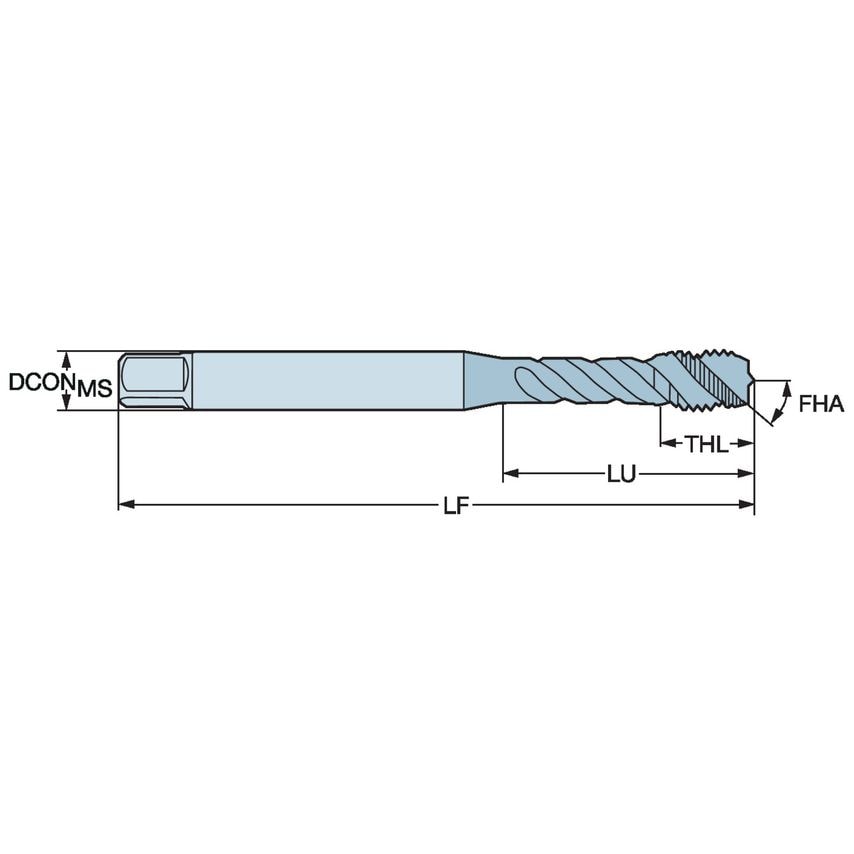

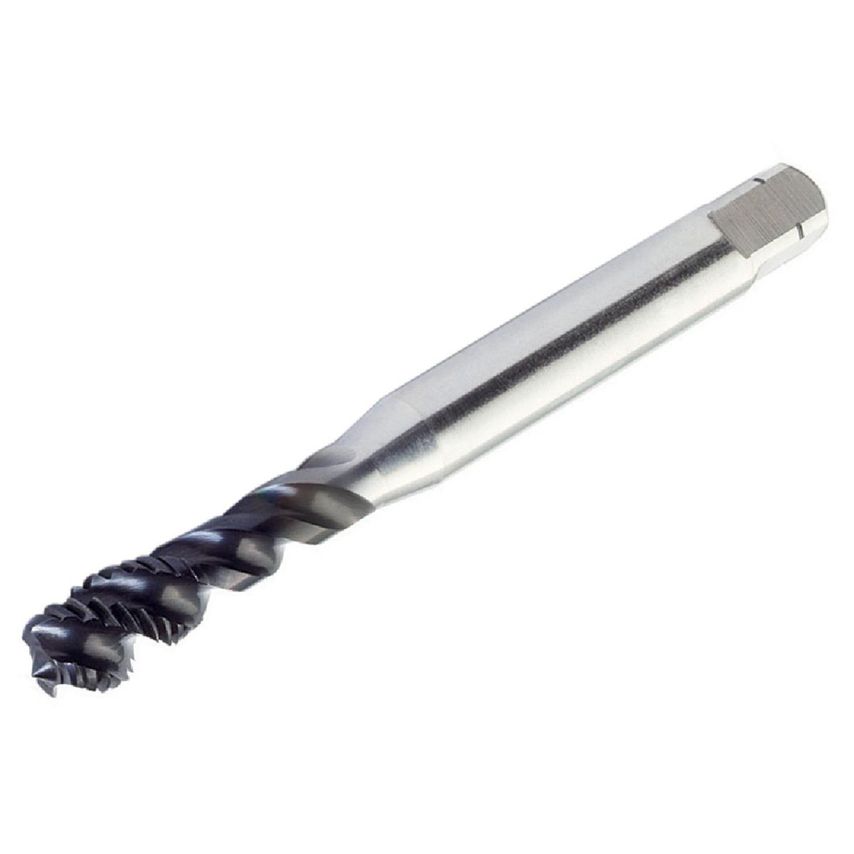

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Basic Standard Group | DIN/ANSI |
| Connection Diameter | 17.8mm |
| Coolant Entry Style | Without Coolant |
| Coating Process Type | PVD |
| Unit Measured | Imperial |
| Through Hole Function Property | Yes |
| Functional Length | 110mm |
| CoroPak | 1.25 |
| MFR Part No. | 6162454 |
| Usable Length | 65.8mm |
| Coating Type | TiAlN |
| Thread Diameter Size | MF 16x1.5 |
| Coolant Exit Style | 0 |
| Blind Hole Function Property | Yes |
| Thread Pitch | 1.5mm |
| Thread Tolerance Class | 6HX |
