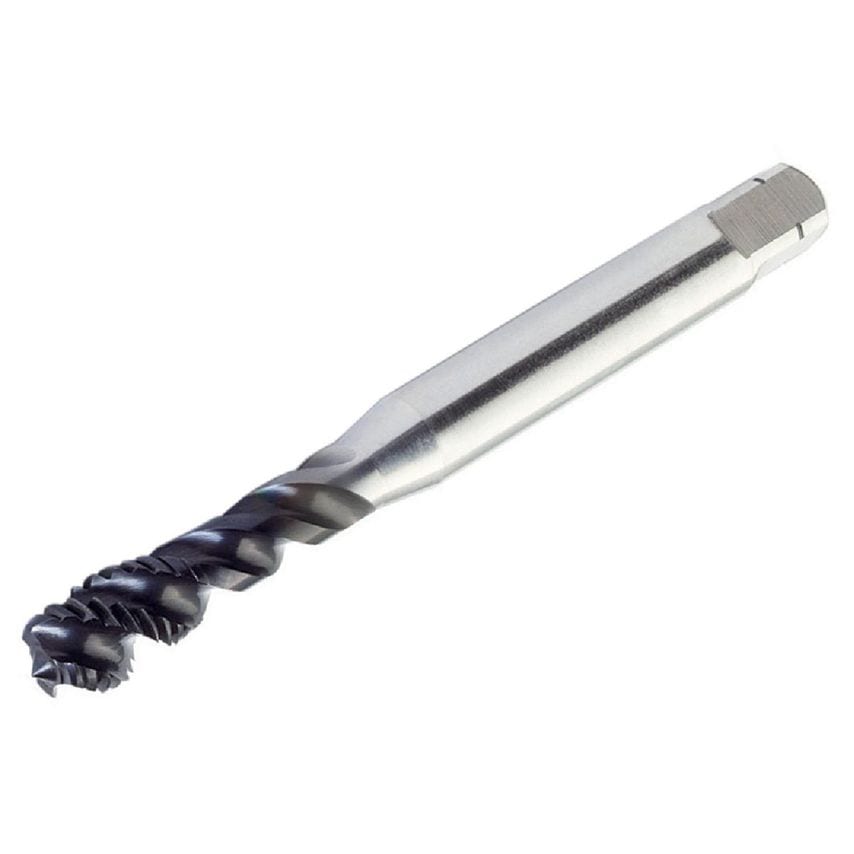

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole

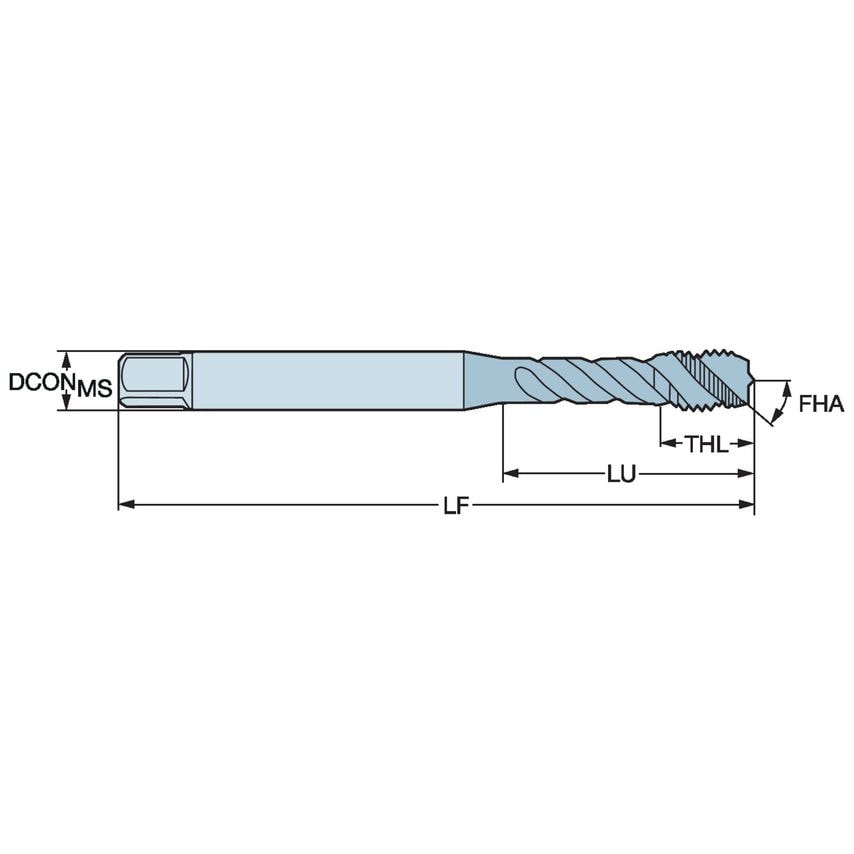

| Functional Length | 125mm |
| Thread Diameter Size | UNF 3/4-16 |
| Unit Measured | Imperial |
| Coating Process Type | PVD |
| Coating Type | TiAlN |
| MFR Part No. | 6162627 |
| Tolerance Class Tool | H3 |
| Threads Per Inch | 16 |
| Blind Hole Function Property | Yes |
| CoroPak | 1.25 |
| Coolant Entry Style | Without Coolant |
| Coolant Exit Style | 0 |
| Connection Diameter | 19.3mm |
| Weight | 0.16kg |
| Basic Standard Group | DIN/ANSI |
| Through Hole Function Property | Yes |
| Usable Length | 77.5mm |
| Thread Tolerance Class | 3B |
