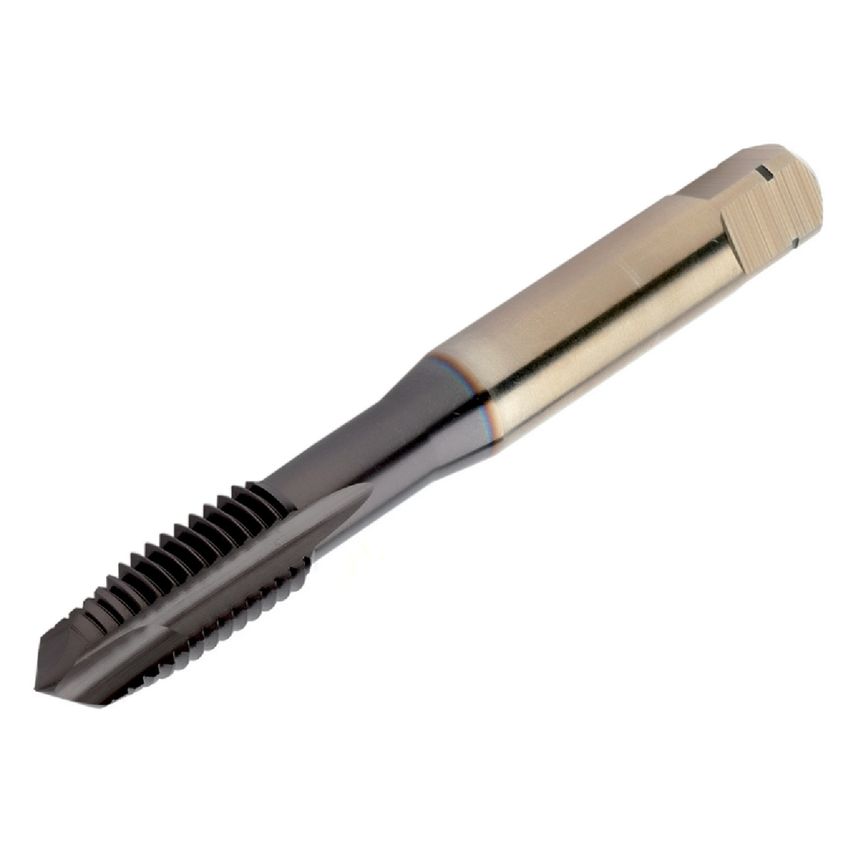

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.

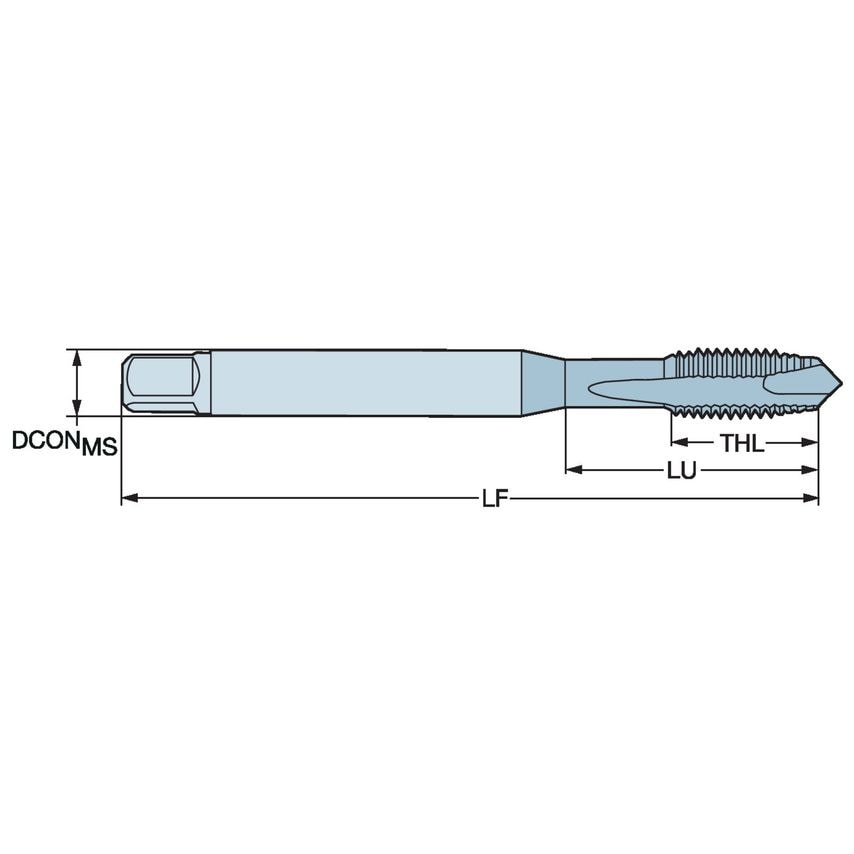

| Usable Length | 62mm |
| Connection Diameter | 6.8mm |
| Unit Measured | Metric |
| Coolant Exit Style | 0 |
| Functional Length | 89mm |
| Thread Tolerance Class | 6H |
| Tap Type | Spiral Point |
| MFR Part No. | 6182547 |
| Thread Pitch | 1.75mm |
| Coating Process Type | PVD |
| Thread Diameter Size | M 12 |
| Coolant Entry Style | Without Coolant |
| CoroPak | 25.4 |
| Blind Hole Function Property | No |
| Product Type | Cutting Tap |
| Through Hole Function Property | Yes |
| Basic Standard Group | ISO 529 |
| Coating Type | TiAlN |
