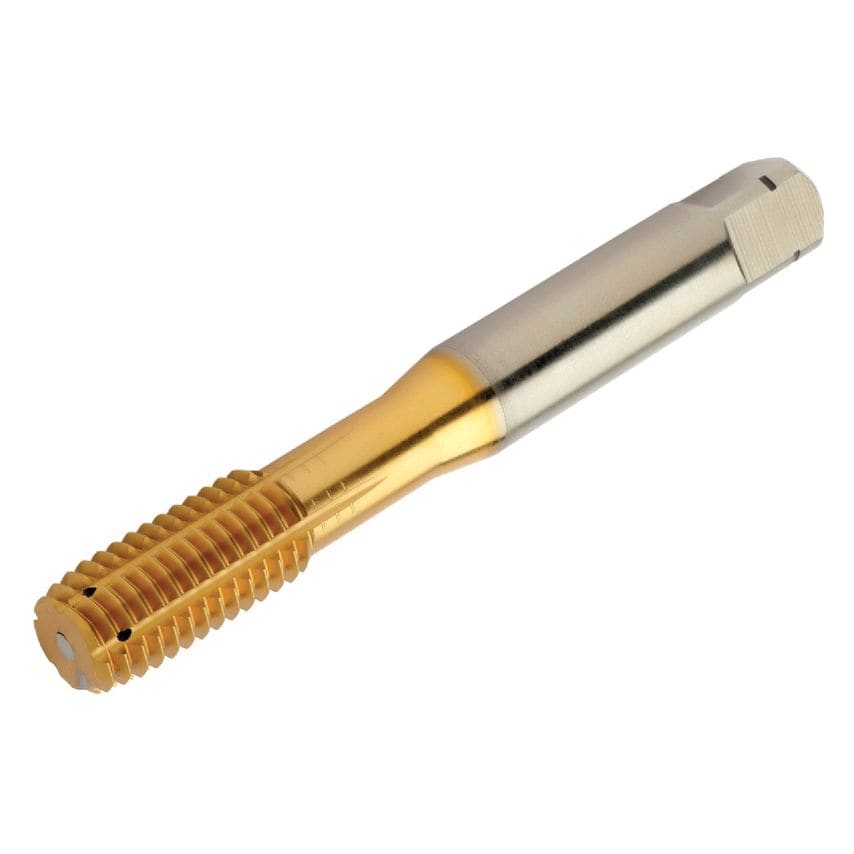

Product Range: CoroTap 400Tool Type: TappingCoroTap 400 is a high-speed, chip-free forming tap suitable for both through- and blind-holes in steel, stainless steel, aluminium and HRSAs. Versatile and optimized forming taps are available, with and without oil grooves, in an assortment of diameters, grades, coatings and thread forms to suit a range of applications.Features & Benefits- Forming taps for through holes and blind holes- Available in many thread forms and standards- Depths up to 3.5 diameter- To ensure low friction at high speeds for precision thread forming with minimal surface roughness, there are five coatings available: TiCN, TiN, TiNF, CrN and Bright (uncoated)
| Coolant Entry Style | 1 |
| Coolant Exit Style | 2 |
| Unit Measured | Metric |
| Thread Diameter Size | M 14 |
| Coating Type | TiN |
| Coating Process Type | PVD |
| Functional Length | 110mm |
| Through Hole Function Property | Yes |
| Thread Tolerance Class | 6HX |
| Basic Standard Group | DIN 2174 |
| Thread Pitch | 2mm |
| MFR Part No. | 7459623 |
| Grade | F125 |
| Connection Diameter | 32mm |
| CoroPak | 132 |
| Usable Length | 49mm |
