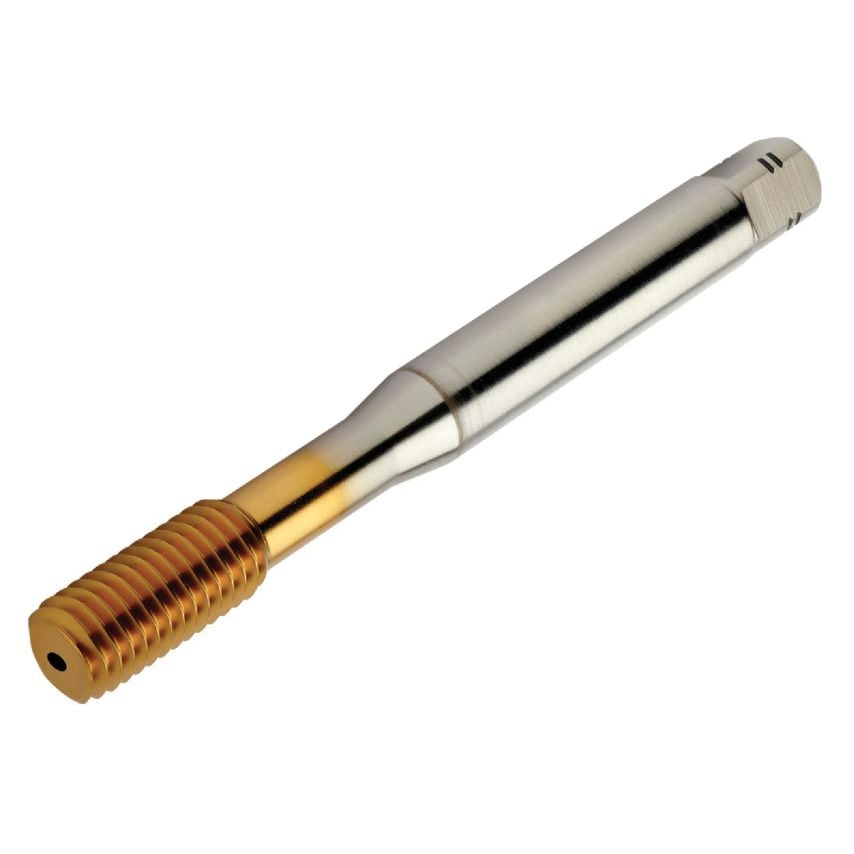

Product Range: CoroTap 400Tool Type: TappingCoroTap 400 is a high-speed, chip-free forming tap suitable for both through- and blind-holes in steel, stainless steel, aluminium and HRSAs. Versatile and optimized forming taps are available, with and without oil grooves, in an assortment of diameters, grades, coatings and thread forms to suit a range of applications.Features & Benefits- Forming taps for through holes and blind holes- Available in many thread forms and standards- Depths up to 3.5 diameter- To ensure low friction at high speeds for precision thread forming with minimal surface roughness, there are five coatings available: TiCN, TiN, TiNF, CrN and Bright (uncoated)
| Basic Standard Group | DIN/ANSI |
| MFR Part No. | 7459665 |
| Through Hole Function Property | Yes |
| Connection Diameter | 25.4mm |
| Unit Measured | Imperial |
| Coating Type | TiN |
| Coolant Exit Style | 2 |
| Usable Length | 30mm |
| Grade | F125 |
| Thread Diameter Size | UNC #12-24 |
| Functional Length | 80mm |
| Thread Tolerance Class | 2BX |
| Coating Process Type | PVD |
| Threads Per Inch | 24 |
| CoroPak | 136 |
| Coolant Entry Style | 2 |
