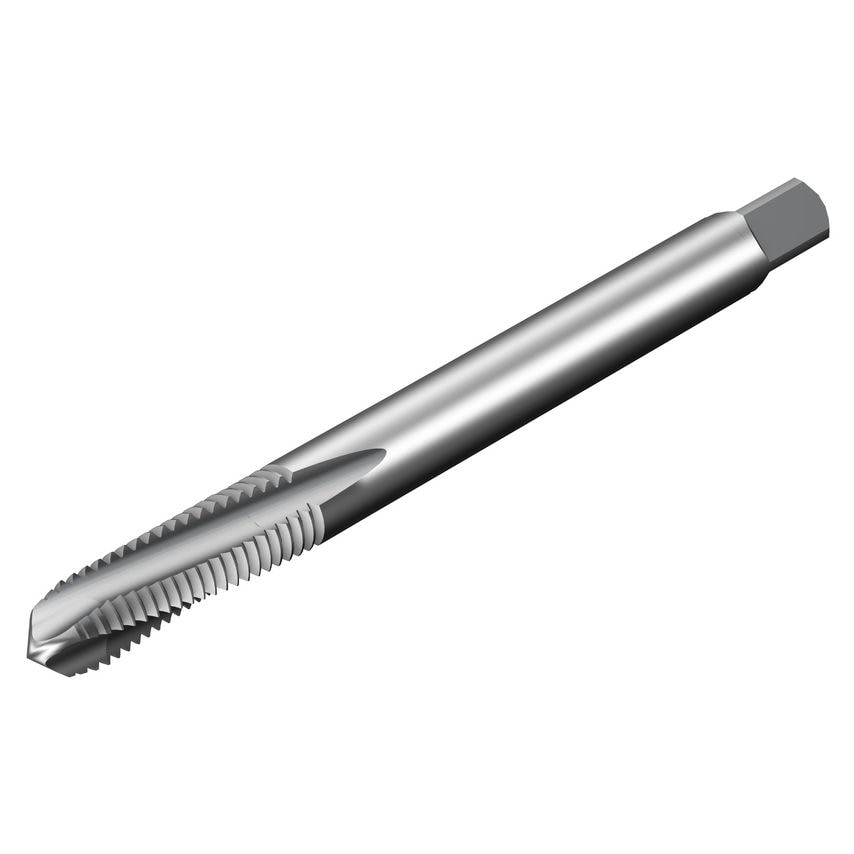

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coating Process Type | UNCOAT |
| Unit Measured | Metric |
| Thread Tolerance Class | 6HX |
| Grade | D150 |
| Thread Diameter Size | M 8 |
| MFR Part No. | 7382635 |
| Coolant Exit Style | 0 |
| CoroPak | 125 |
| Usable Length | 20.5mm |
| Thread Pitch | 1.25mm |
| Blind Hole Function Property | Yes |
| Functional Length | 90mm |
| Connection Diameter | 101.6mm |
| Basic Standard Group | DIN 371 |
| Coating Type | Uncoated |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
