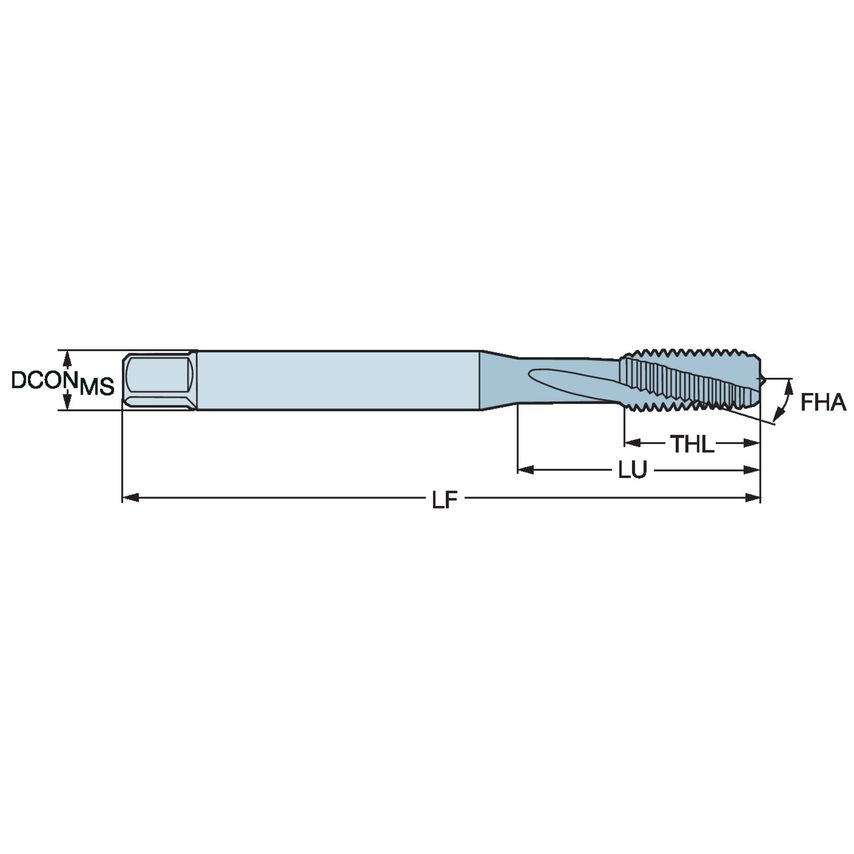

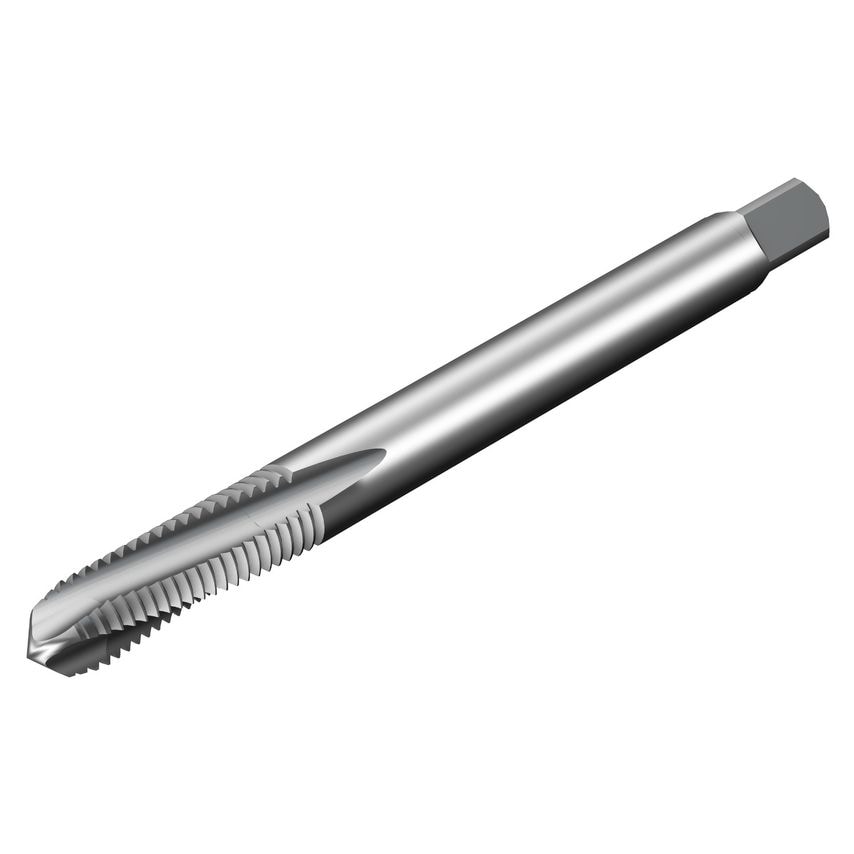

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Thread Diameter Size | EGUNJF 1/4-28 |
| Coating Process Type | UNCOAT |
| Coolant Entry Style | Without Coolant |
| CoroPak | 125 |
| Through Hole Function Property | Yes |
| Basic Standard Group | DIN 2184-1 |
| Grade | D150 |
| MFR Part No. | 7382656 |
| Coating Type | Uncoated |
| Thread Tolerance Class | 3B |
| Connection Diameter | 101.6mm |
| Threads Per Inch | 28 |
| Blind Hole Function Property | Yes |
| Functional Length | 80mm |
| Unit Measured | Metric |
| Usable Length | 16mm |
| Coolant Exit Style | 0 |
