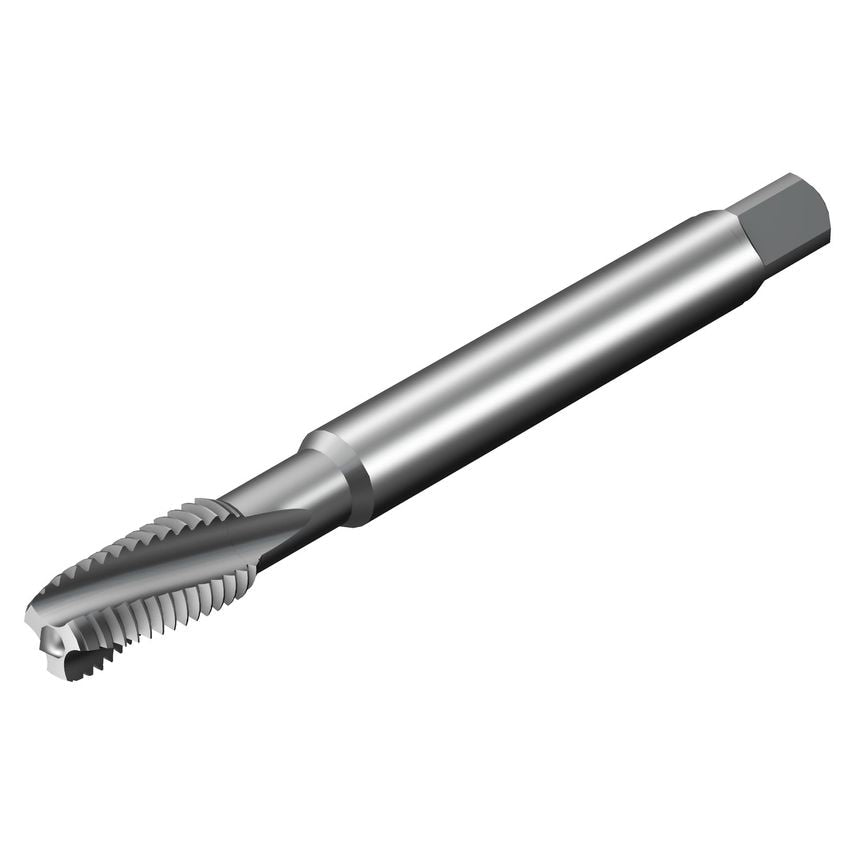

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Grade | D115 |
| Connection Diameter | 6.8mm |
| MFR Part No. | 7382702 |
| Through Hole Function Property | Yes |
| Basic Standard Group | DIN 374 |
| Coolant Entry Style | Without Coolant |

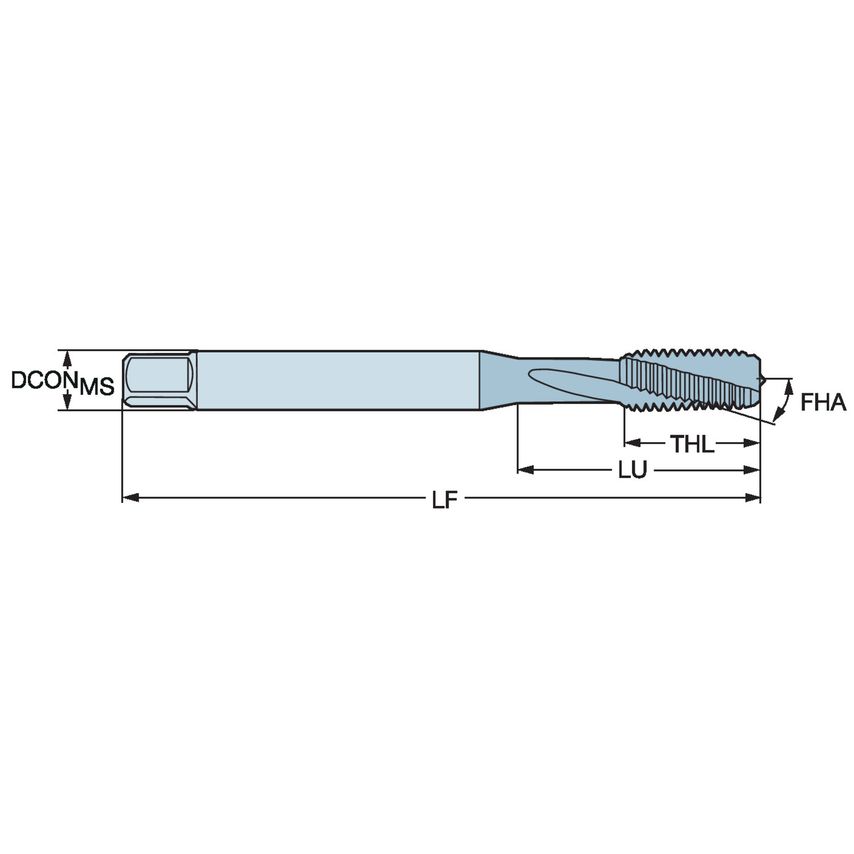

| Functional Length | 100mm |
| Coating Process Type | PVD |
| Unit Measured | Metric |
| Coolant Exit Style | 0 |
| CoroPak | 125 |
| Coating Type | AlCrN |
| Usable Length | 73mm |
| Thread Diameter Size | MF 12x1 |
| Blind Hole Function Property | Yes |
| Thread Tolerance Class | 6HX |
| Thread Pitch | 1mm |
