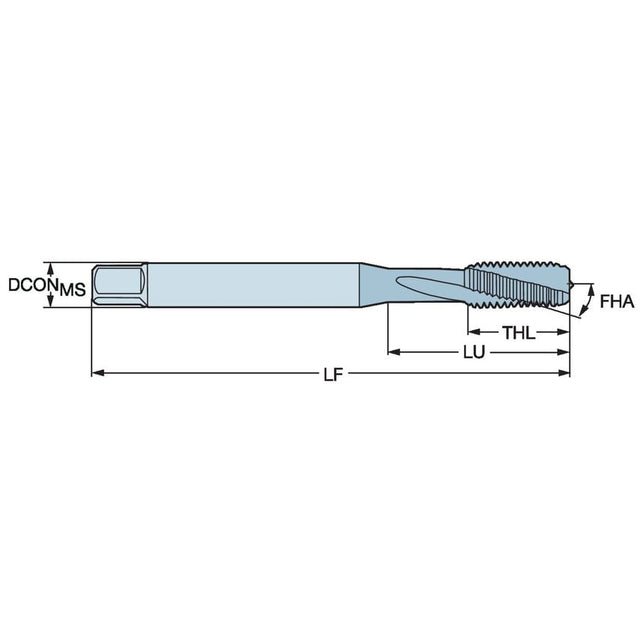

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coating Process Type | PVD |
| Coating Type | AlCrN |
| Coolant Entry Style | Without Coolant |
| Thread Pitch | 1.5mm |
| Connection Diameter | 32mm |
| Blind Hole Function Property | Yes |
| Usable Length | 71mm |
| Thread Tolerance Class | 6HX |
| Grade | D115 |
| MFR Part No. | 7382704 |
| Basic Standard Group | DIN 374 |
| Through Hole Function Property | Yes |
| Thread Diameter Size | MF 14x1.5 |
| Unit Measured | Metric |
| Functional Length | 100mm |
| CoroPak | 125 |
| Coolant Exit Style | 0 |
