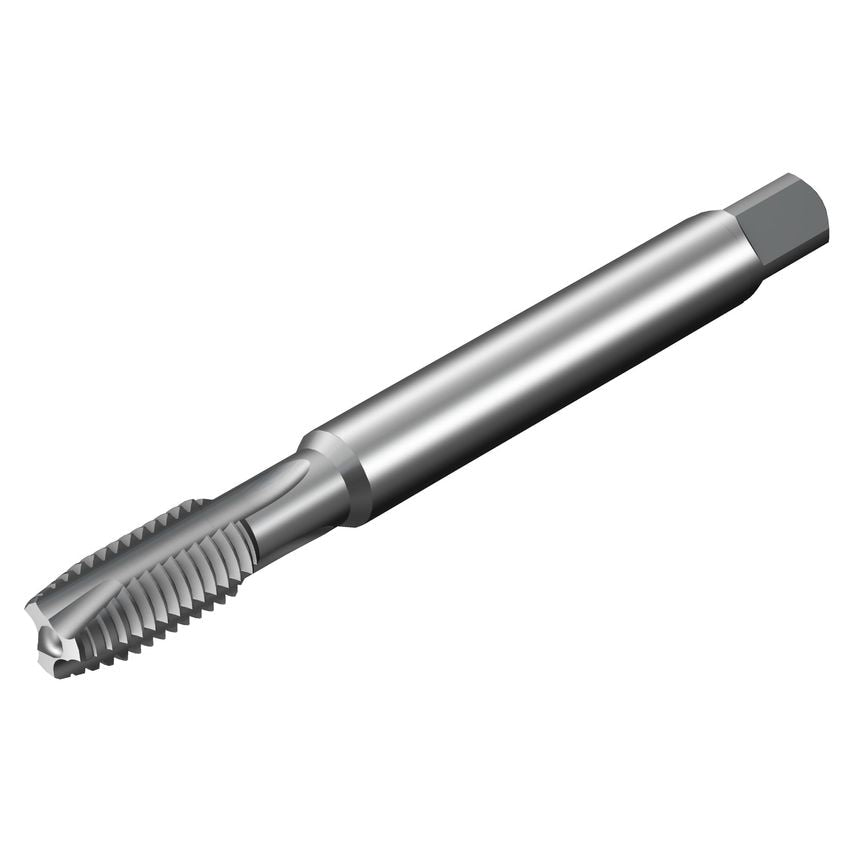

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Thread Pitch | 1mm |
| Thread Size | M10 |
| Thread Tolerance Class | 6HX |
| Usable Length | 33.5mm |
| Blind Hole Function Property | No |
| Coating Type | AlCrN |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 25mm |
| Coolant Exit Style | 0 |
| Through Hole Function Property | Yes |
| CoroPak | 125 |
| Thread Diameter Size | MF 10x1 |
| Basic Standard Group | DIN 371 |
| Tap Type | Spiral Point |
| Grade | D115 |
| MFR Part No. | 7382727 |
| Functional Length | 100mm |
| Unit Measured | Metric |
