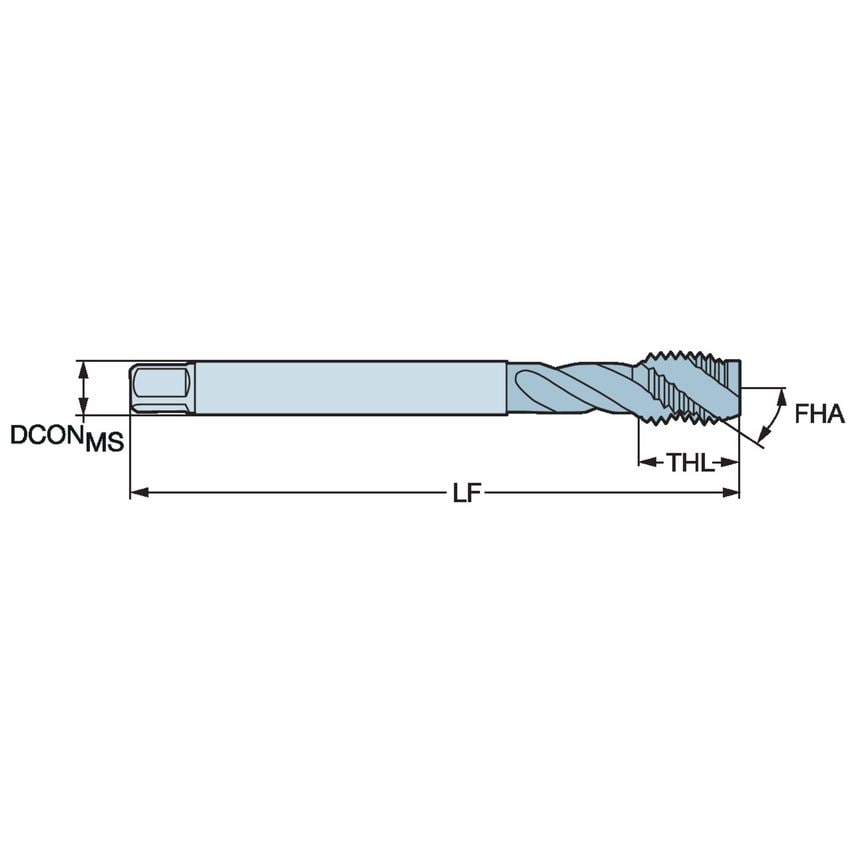

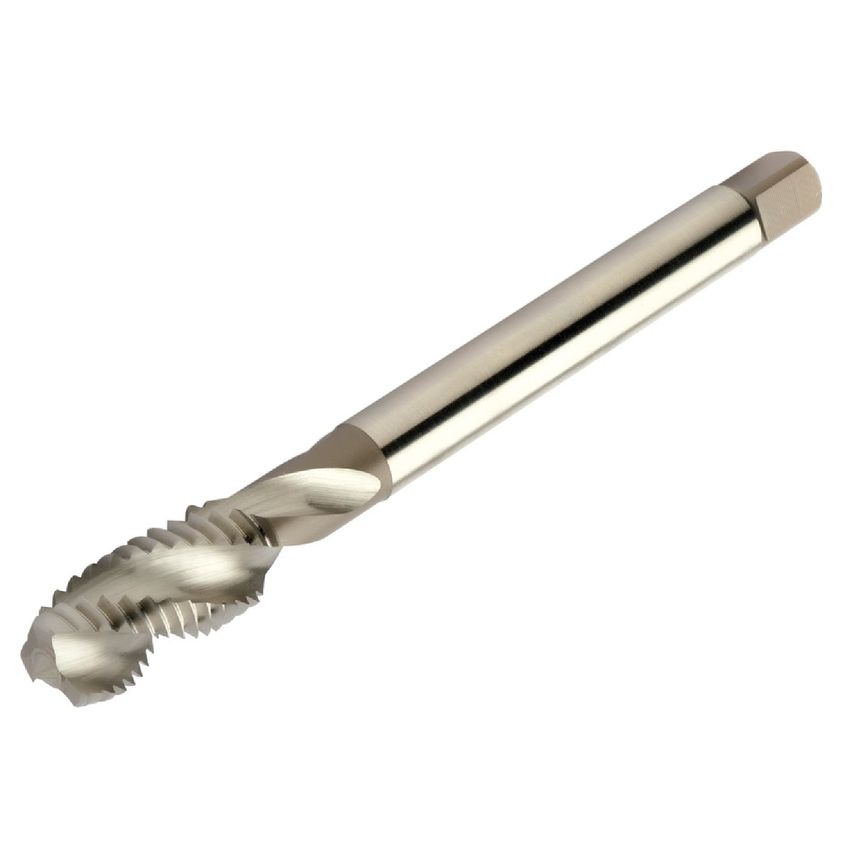

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Basic Standard Group | DIN 376 |
| Usable Length | 95mm |
| Thread Tolerance Class | 6H |
| Weight | 0.2kg |
| Thread Pitch | 2.5mm |
| CoroPak | 170 |
| Through Hole Function Property | Yes |
| Thread Diameter Size | M 20 |
| ISO Cutting Tool Material | HSS >=4 |
| Functional Length | 140mm |
| Unit Measured | Metric |
| Coating Process Type | UNCOAT |
| Blind Hole Function Property | Yes |
| Connection Diameter | 63mm |
| MFR Part No. | 7605873 |
| Grade | B150 |
| Coolant Entry Style | Without Coolant |
| Coolant Exit Style | 0 |
| Coating Type | Uncoated |
