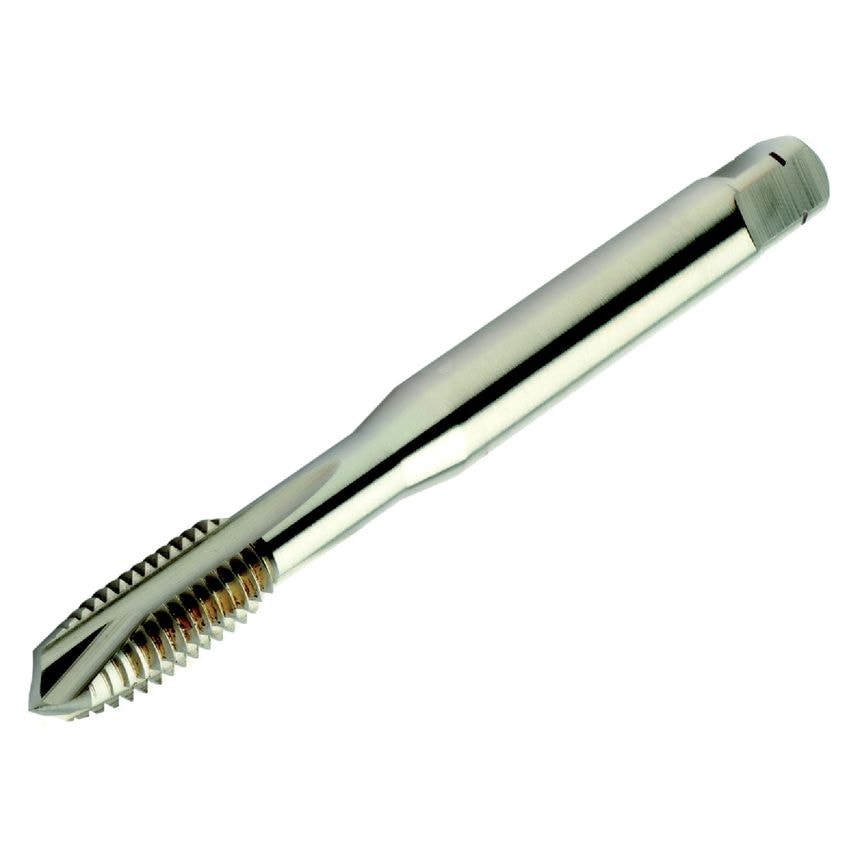

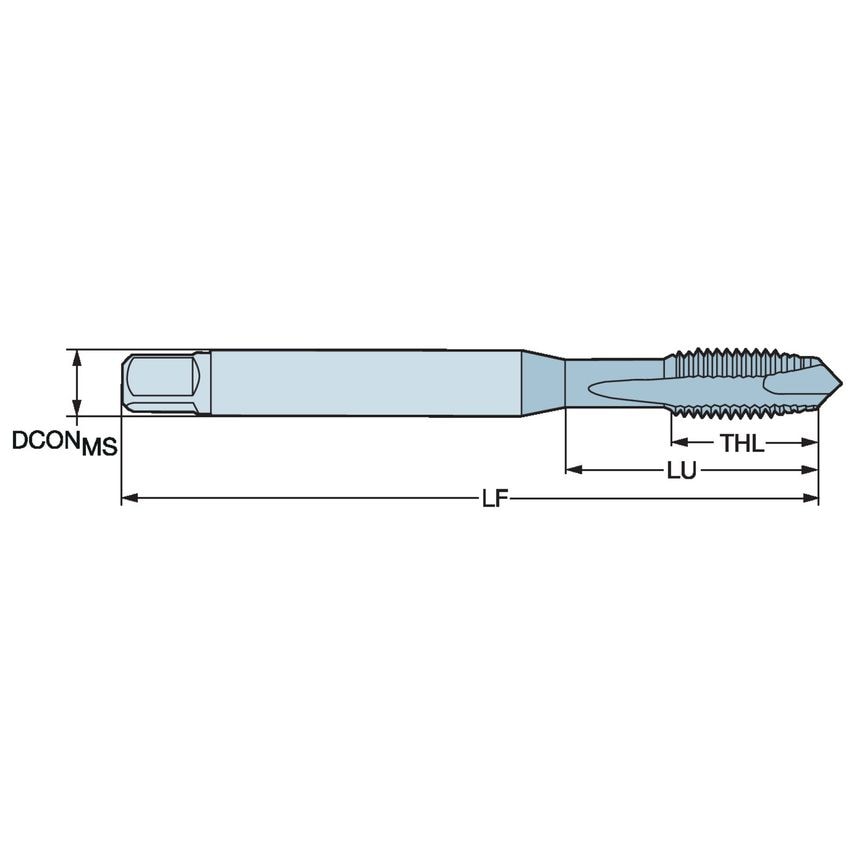

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Thread Pitch | 0.5mm |
| Basic Standard Group | DIN 371 |
| Unit Measured | Metric |
| Usable Length | 16mm |
| Coolant Entry Style | Without Coolant |
| Tap Type | Spiral Point |
| Through Hole Function Property | Yes |
| Connection Diameter | 20mm |
| CoroPak | 170 |
| ISO Cutting Tool Material | HSS >=4 |
| Blind Hole Function Property | No |
| Coating Type | ZrN |
| Thread Diameter Size | M 3 |
| Grade | B125 |
| Thread Tolerance Class | 6H |
| Thread Size | 3.5mm |
| Coating Process Type | PVD |
| MFR Part No. | 7605875 |
| Functional Length | 56mm |
| Coolant Exit Style | 0 |
