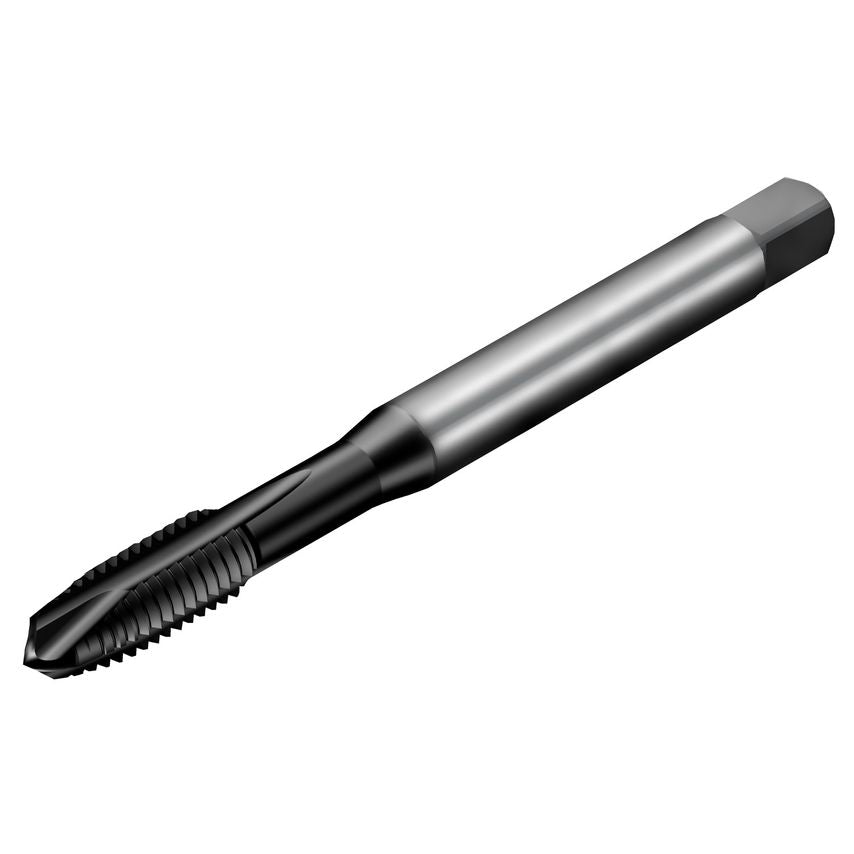

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Grade | P1PM |
| Tap Type | Spiral Point |
| Coolant Entry Style | 1 |
| Usable Length | 21mm |
| Coating Type | TiAlN |
| Unit Measured | Metric |
| Connection Diameter | 20mm |
| Coolant Exit Style | 2 |
| Thread Diameter Size | M4 |
| MFR Part No. | 8060123 |
| CoroPak | 18 |
| Through Hole Function Property | Yes |
| Functional Length | 63mm |
| Coating Process Type | PVD |
| Thread Size | 4.5mm |
| Thread Pitch | 0.7mm |
| Blind Hole Function Property | No |
| Basic Standard Group | DIN371 |
| Thread Tolerance Class | 6HX |
