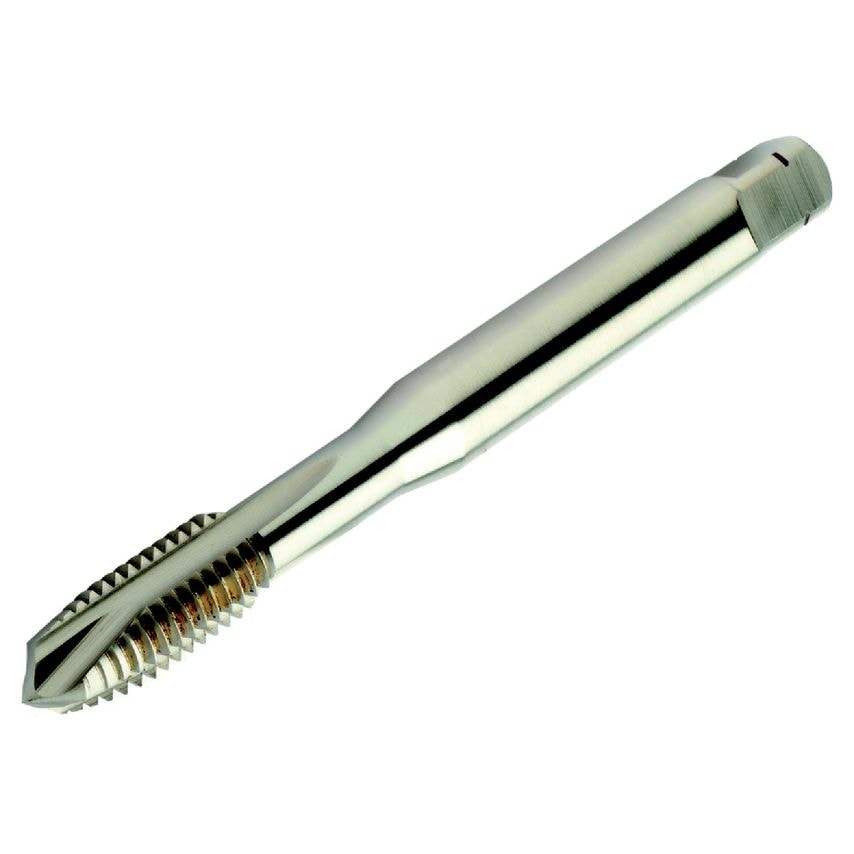

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Usable Length | 15.875mm |
| Grade | D150 |
| Thread Pitch | 0.5mm |
| MFR Part No. | 7605909 |
| Tap Type | Spiral Point |
| Unit Measured | Imperial |
| Thread Diameter Size | M 3 |
| Connection Diameter | 31.75mm |
| CoroPak | 175 |
| Coolant Exit Style | 0 |
| Blind Hole Function Property | No |
| Coating Process Type | UNCOAT |
| Through Hole Function Property | Yes |
| Thread Size | 3.58mm |
| Basic Standard Group | DIN/ANSI |
| Functional Length | 56mm |
| Coating Type | Uncoated |
| Thread Tolerance Class | 6H |
| Coolant Entry Style | Without Coolant |
