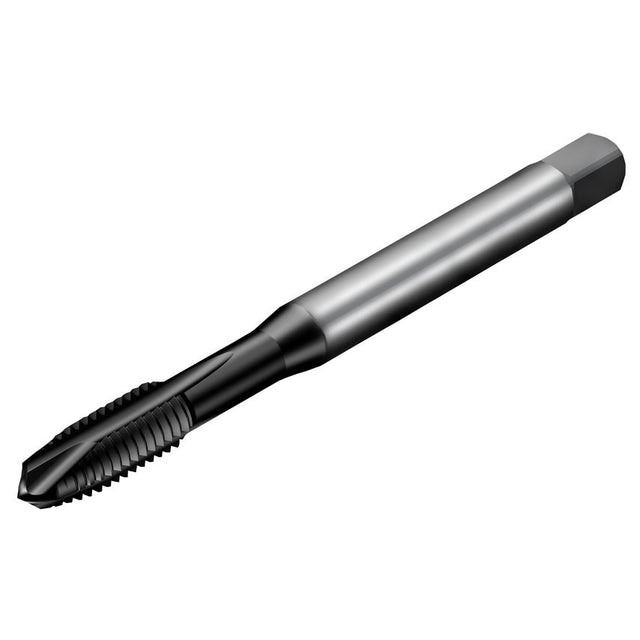

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Coating Type | TiAlN |
| Thread Diameter Size | M1 |
| Functional Length | 40mm |
| Coolant Entry Style | Without Coolant |
| Tap Type | Spiral Point |
| Unit Measured | Metric |
| Thread Tolerance Class | 5HX |
| Thread Pitch | 0.25mm |
| Coolant Exit Style | 0 |
| Through Hole Function Property | Yes |
| Blind Hole Function Property | No |
| MFR Part No. | 8060145 |
| Grade | P1PM |
| Usable Length | 6mm |
| CoroPak | 18 |
| Coating Process Type | PVD |
| Basic Standard Group | DIN371 |
| Connection Diameter | 18mm |
