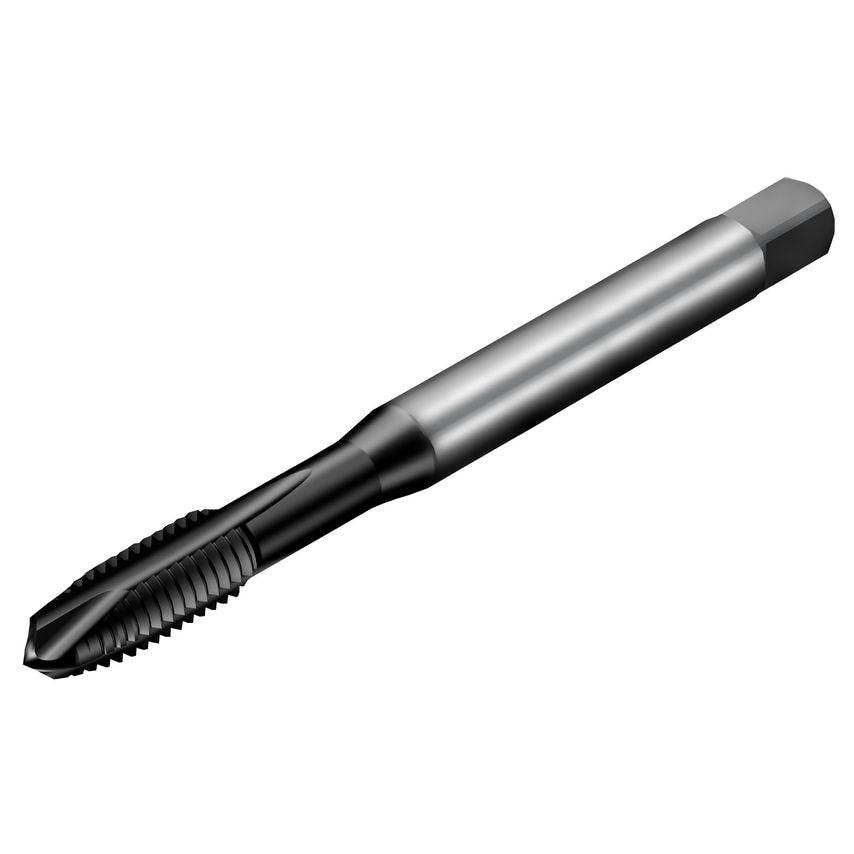

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Unit Measured | Metric |
| Thread Pitch | 1mm |
| Connection Diameter | 25.4mm |
| Thread Tolerance Class | 6HX |
| Coolant Entry Style | Without Coolant |
| Functional Length | 80mm |
| Thread Size | M6 |
| Coolant Exit Style | 0 |
| Blind Hole Function Property | No |
| Grade | P1PM |
| Through Hole Function Property | Yes |
| Tap Type | Spiral Point |
| Coating Process Type | PVD |
| CoroPak | 18 |
| Coating Type | TiAlN |
| MFR Part No. | 8060157 |
| Usable Length | 26mm |
| Basic Standard Group | DIN/ANSI |
| Thread Diameter Size | M6 |
