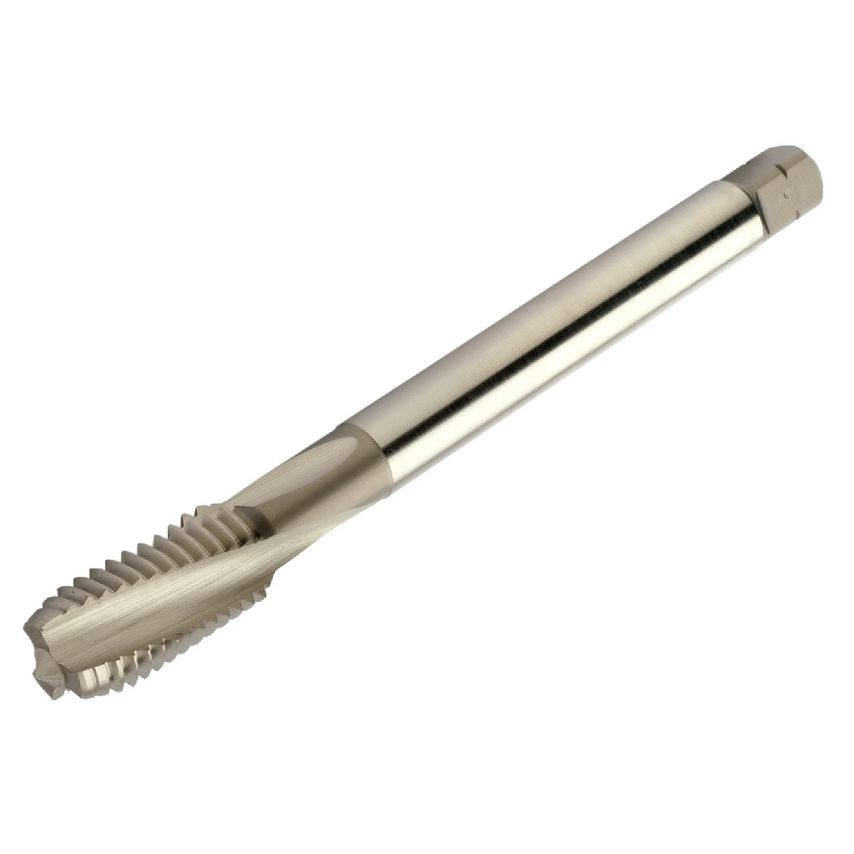

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Grade | D150 |
| Blind Hole Function Property | Yes |
| MFR Part No. | 7605936 |
| Usable Length | 77.5mm |
| Thread Tolerance Class | 2B |
| Thread Diameter Size | UNC 3/4-10 |
| Coolant Entry Style | Without Coolant |
| Basic Standard Group | DIN/ANSI |
| CoroPak | 177 |
| Coating Type | Uncoated |
| Functional Length | 125mm |
| Weight | 0.17kg |
| Through Hole Function Property | Yes |
| Unit Measured | Imperial |
| Coating Process Type | UNCOAT |
| Threads Per Inch | 10 |
| Connection Diameter | 20.8mm |
| Coolant Exit Style | 0 |
