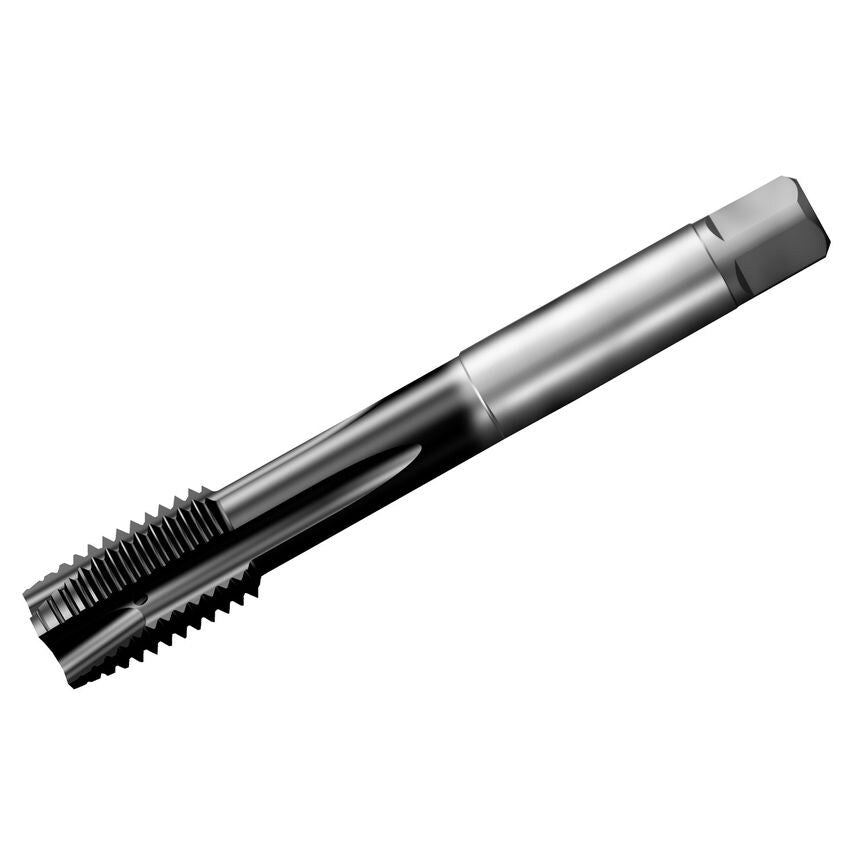

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Coolant Exit Style | 2 |
| MFR Part No. | 8061103 |
| Blind Hole Function Property | No |
| Usable Length | 72mm |
| Coolant Entry Style | 1 |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Thread Pitch | 2.5mm |
| Thread Size | M20 |
| Connection Diameter | 63mm |
| CoroPak | 20 |
| Weight | 0.2kg |
| Thread Diameter Size | M20 |
| Coating Process Type | PVD |
| Grade | P1PM |
| Tap Type | Spiral Point |
| Thread Tolerance Class | 6HX |
| Functional Length | 140mm |
| Coating Type | TiAlN |
| Basic Standard Group | DIN376 |
