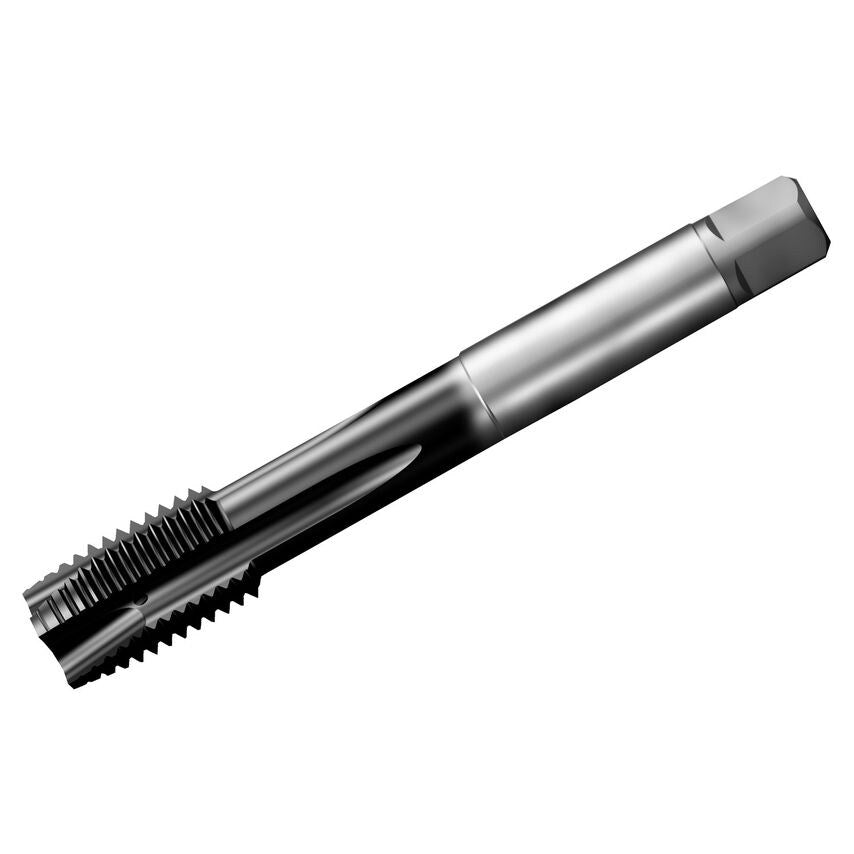

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Coating Type | TiAlN |

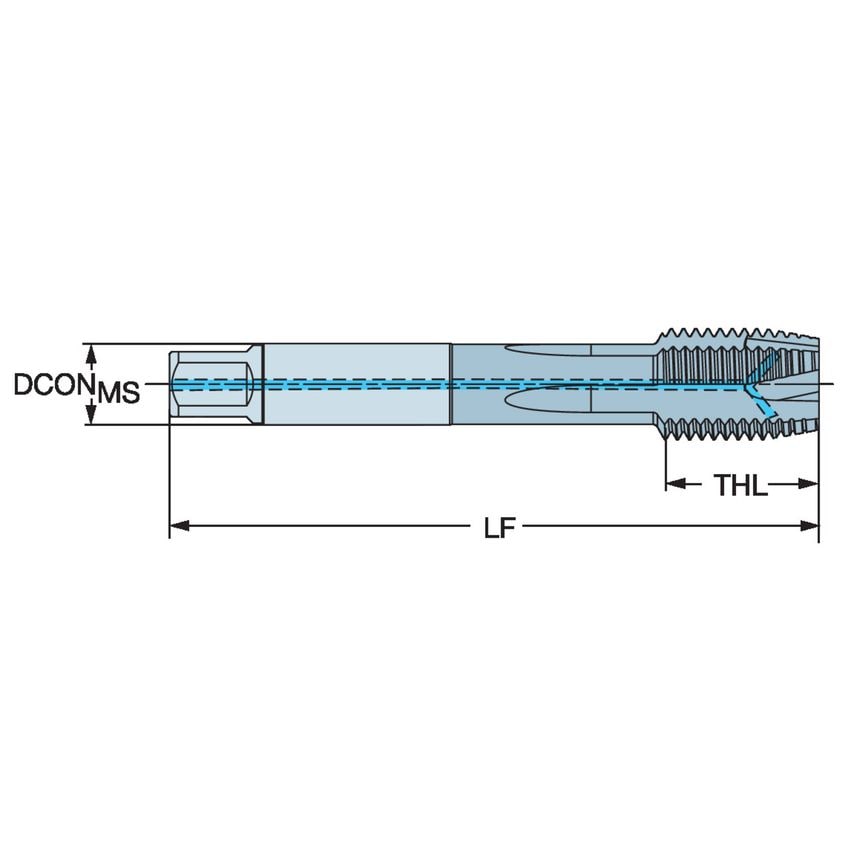

| Functional Length | 160mm |
| Coating Process Type | PVD |
| Thread Diameter Size | UNC1\-8 |
| Basic Standard Group | DIN/ANSI |
| CoroPak | 20 |
| Threads Per Inch | 8 |
| Usable Length | 86mm |
| MFR Part No. | 8061114 |
| Connection Diameter | 3.5mm |
| Weight | 0.37kg |
| Blind Hole Function Property | No |
| Thread Tolerance Class | 2BX |
| Coolant Exit Style | 2 |
| Through Hole Function Property | Yes |
| Tap Type | Spiral Point |
| Thread Pitch | 3.175mm |
| Grade | P1PM |
| Coolant Entry Style | 1 |
| Unit Measured | Metric |
