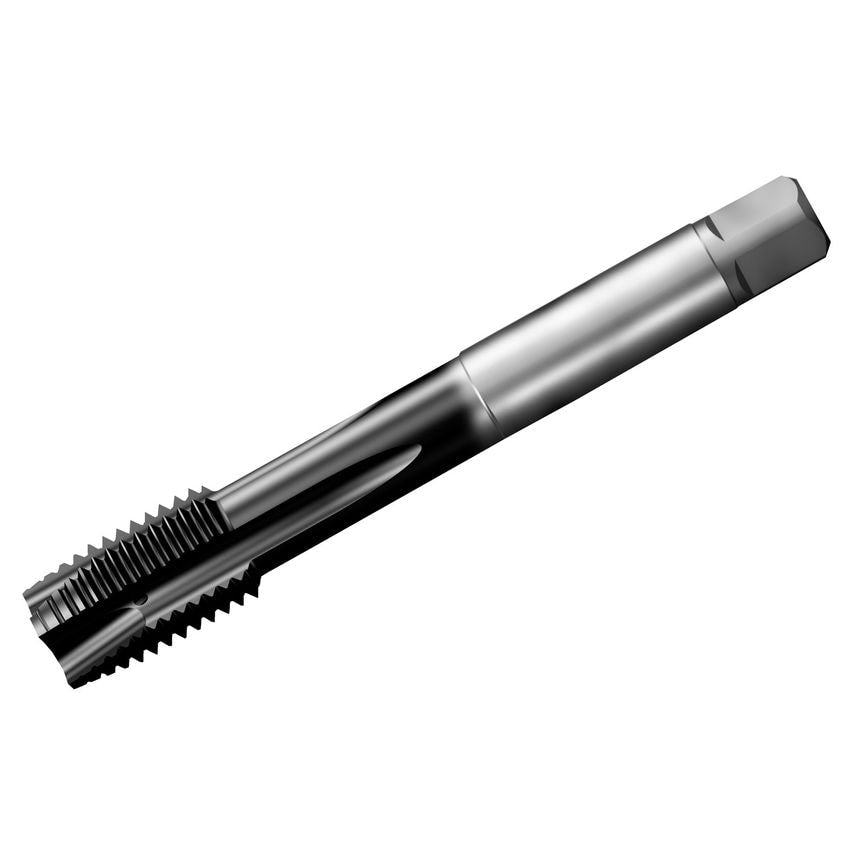

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.

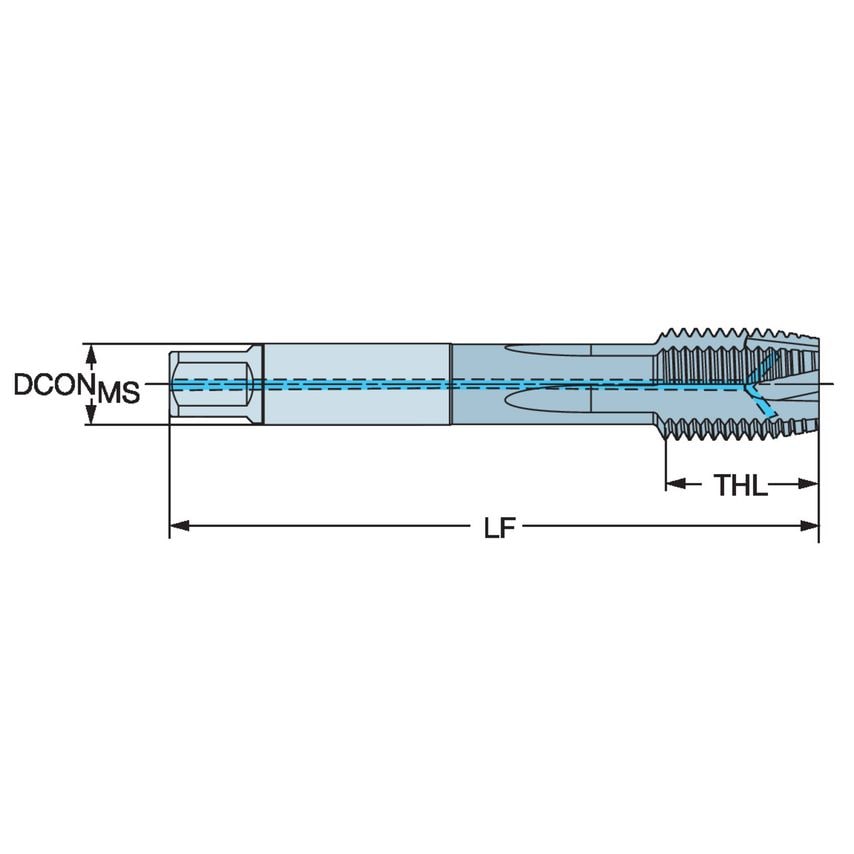

| Connection Diameter | 12.7mm |
| Coating Process Type | PVD |
| Tap Type | Spiral Point |
| CoroPak | 20 |
| Threads Per Inch | 13 |
| Thread Tolerance Class | 2BX |
| Coolant Entry Style | 1 |
| Usable Length | 55mm |
| Coolant Exit Style | 2 |
| Through Hole Function Property | Yes |
| Basic Standard Group | DIN/ANSI |
| Grade | P1PM |
| Thread Pitch | 1.9539mm |
| Coating Type | TiAlN |
| Functional Length | 110mm |
| MFR Part No. | 8061110 |
| Blind Hole Function Property | No |
| Unit Measured | Metric |
| Thread Diameter Size | UNC1/2-13 |
