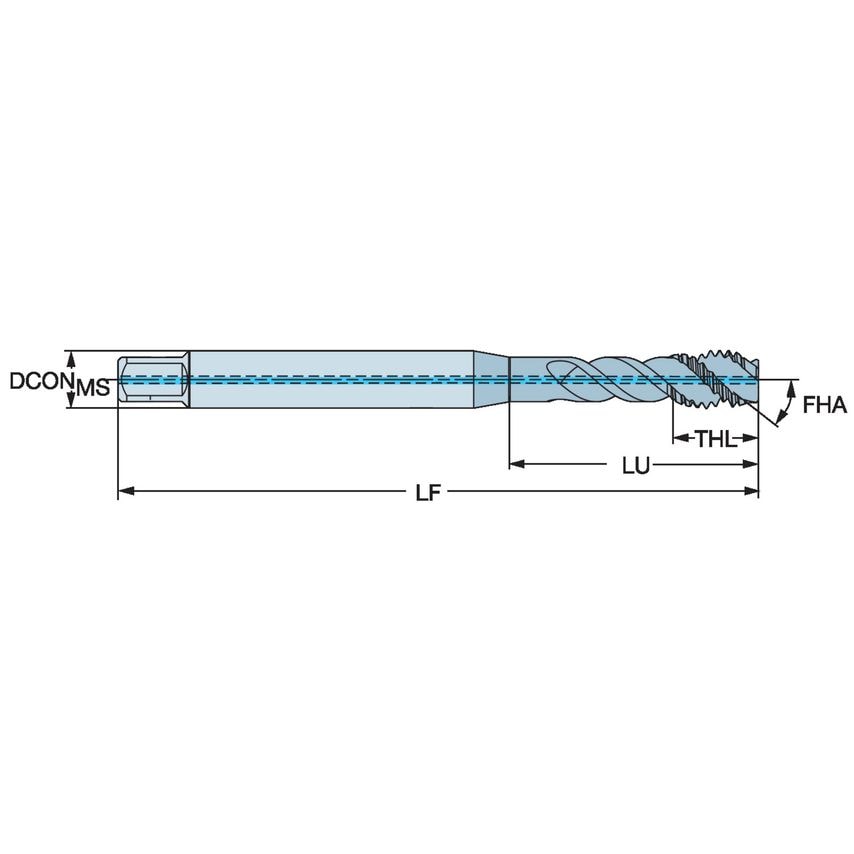

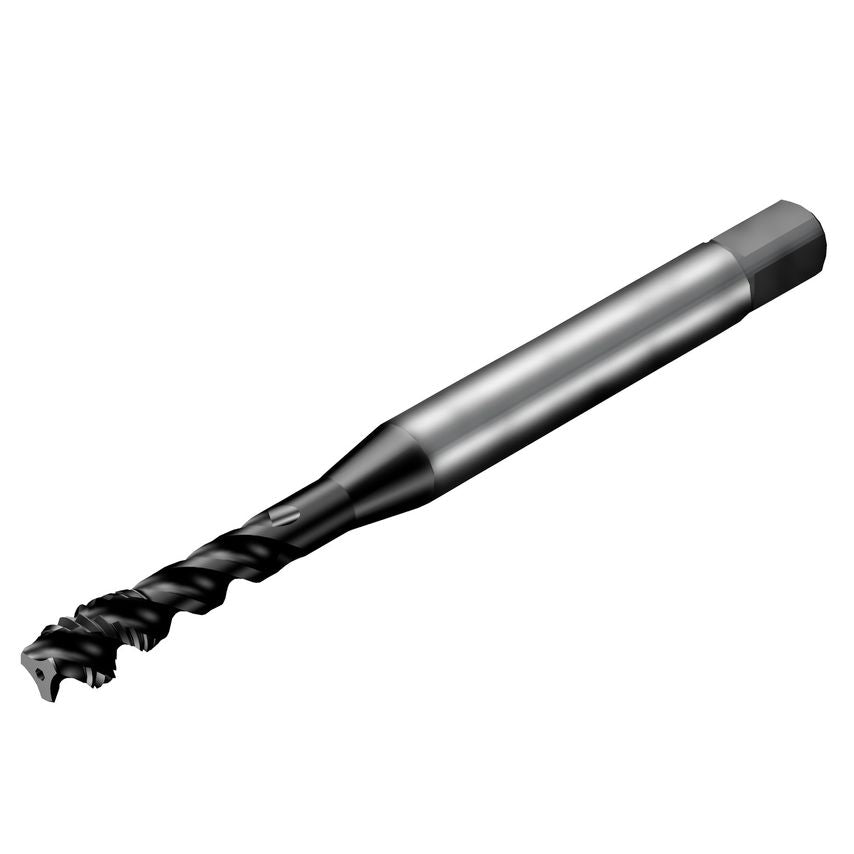

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coating Type | TiAlN |
| Unit Measured | Metric |
| MFR Part No. | 8055750 |
| Usable Length | 33mm |
| Thread Diameter Size | UNC5/16-18 |
| Coating Process Type | PVD |
| Blind Hole Function Property | Yes |
| Thread Pitch | 1.411mm |
| CoroPak | 11 |
| Coolant Exit Style | 1 |
| Grade | P1PM |
| Basic Standard Group | DIN/ANSI |
| Thread Tolerance Class | 2BX |
| Functional Length | 90mm |
| Coolant Entry Style | 1 |
| Through Hole Function Property | Yes |
| Threads Per Inch | 18 |
| Connection Diameter | 11.7mm |
