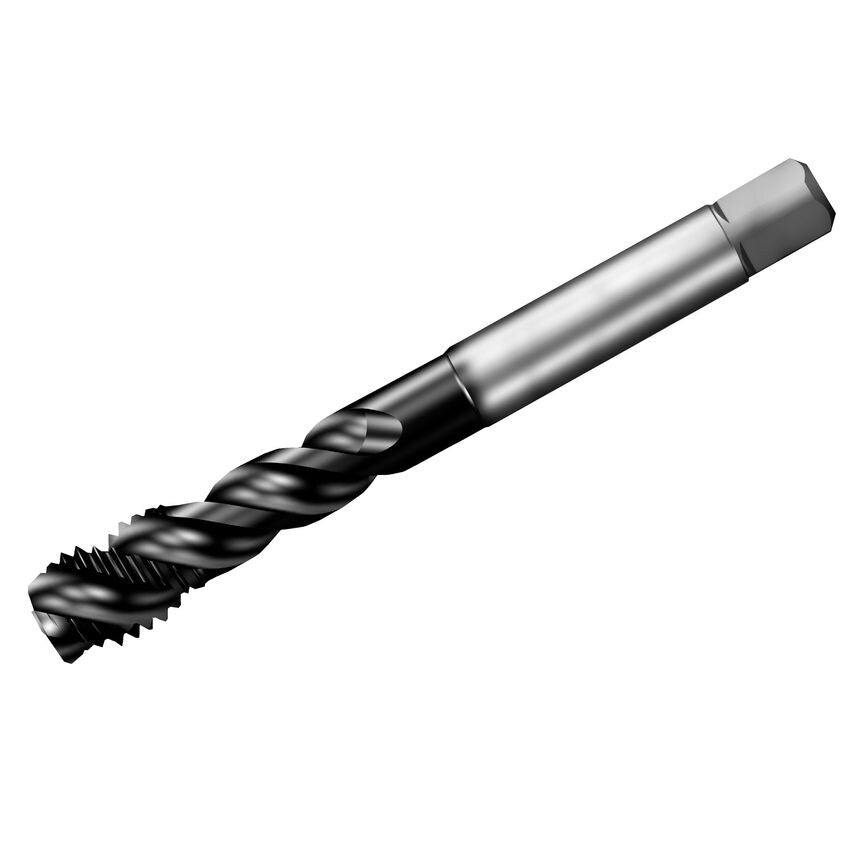

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coolant Exit Style | 1 |
| Unit Measured | Metric |
| Basic Standard Group | DIN/ANSI |
| CoroPak | 11 |
| Connection Diameter | 19.3mm |
| Grade | P1PM |
| Through Hole Function Property | Yes |
| Threads Per Inch | 11 |
| Blind Hole Function Property | Yes |
| Usable Length | 55mm |
| MFR Part No. | 8055753 |
| Coating Process Type | PVD |
| Coolant Entry Style | 1 |
| Coating Type | TiAlN |
| Thread Pitch | 2.3091mm |
| Functional Length | 110mm |
| Thread Tolerance Class | 2BX |
| Thread Diameter Size | UNC5/8-11 |
