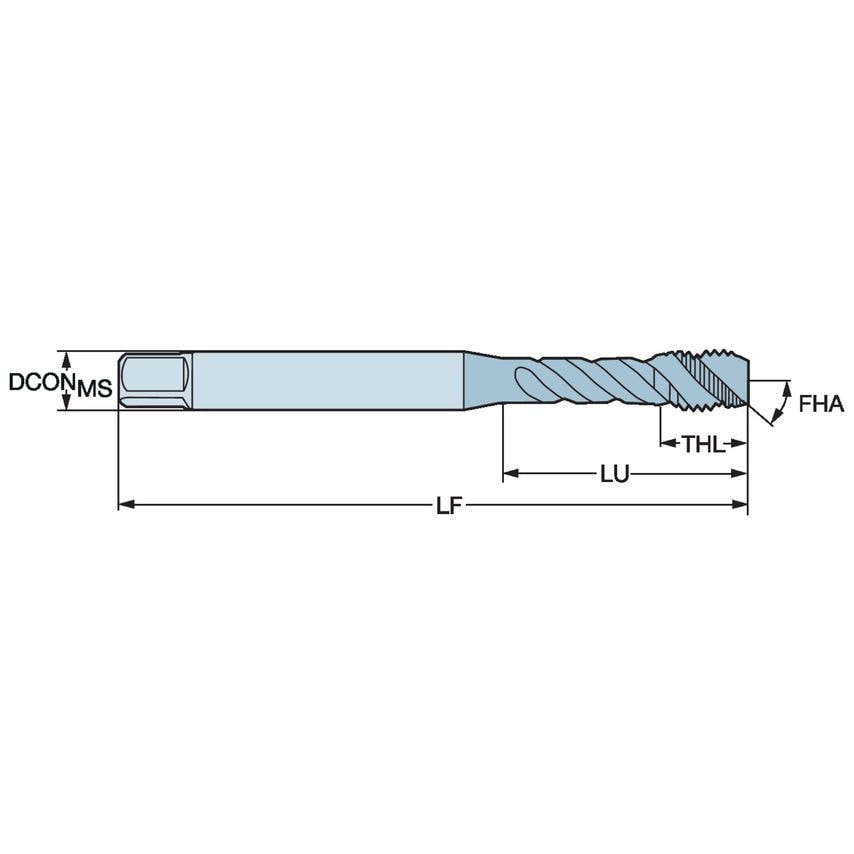

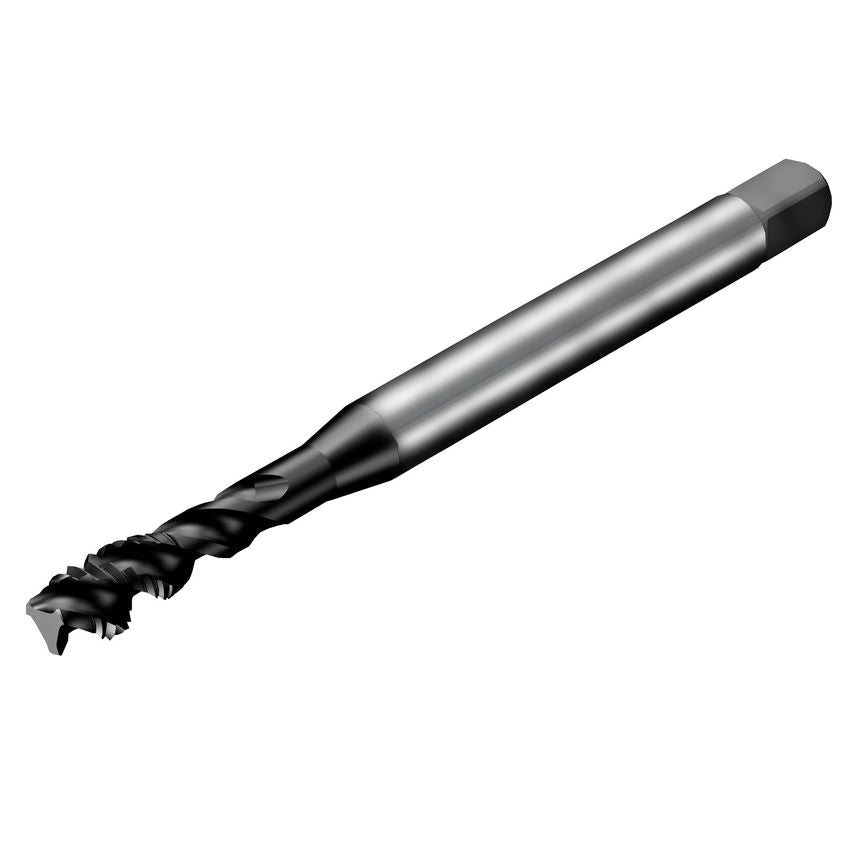

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Thread Diameter Size | UNF5/16-24 |
| Thread Pitch | 1.05833mm |
| MFR Part No. | 8055761 |
| Through Hole Function Property | Yes |
| Functional Length | 90mm |
| Connection Diameter | 11.7mm |
| Coating Type | TiAlN |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Usable Length | 33.5mm |
| Coolant Exit Style | 0 |
| Basic Standard Group | DIN/ANSI |
| CoroPak | 12 |
| Grade | P1PM |
| Coating Process Type | PVD |
| Threads Per Inch | 24 |
| Thread Tolerance Class | 3BX |
| Blind Hole Function Property | Yes |
