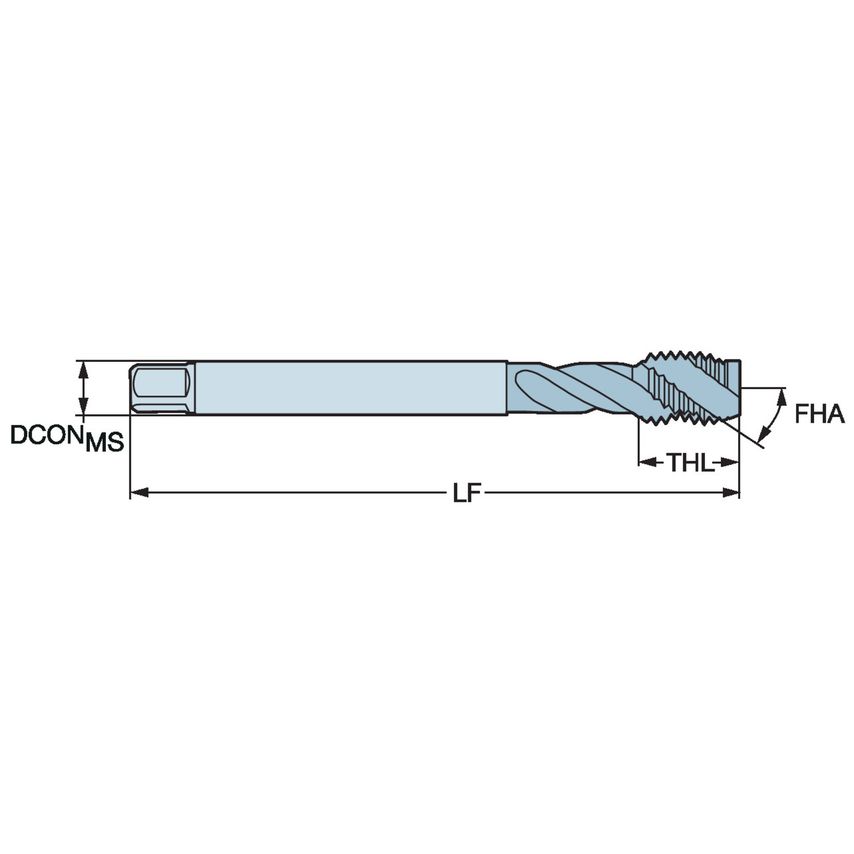

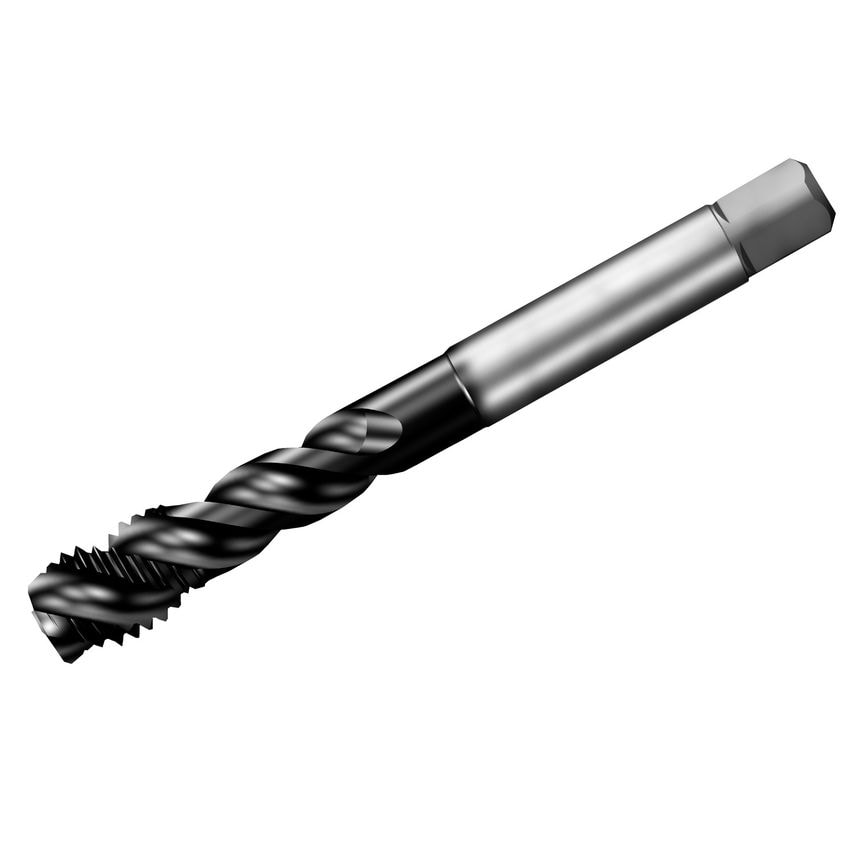

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coolant Exit Style | 0 |
| CoroPak | 12 |
| MFR Part No. | 8055769 |
| Coating Type | TiAlN |
| Threads Per Inch | 18 |
| Basic Standard Group | DIN/ANSI |
| Functional Length | 110mm |
| Thread Pitch | 1.4111mm |
| Usable Length | 55mm |
| Connection Diameter | 19.3mm |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Thread Diameter Size | UNF5/8-18 |
| Thread Tolerance Class | 2BX |
| Coating Process Type | PVD |
| Grade | P1PM |
| Coolant Entry Style | Without Coolant |
| Blind Hole Function Property | Yes |
