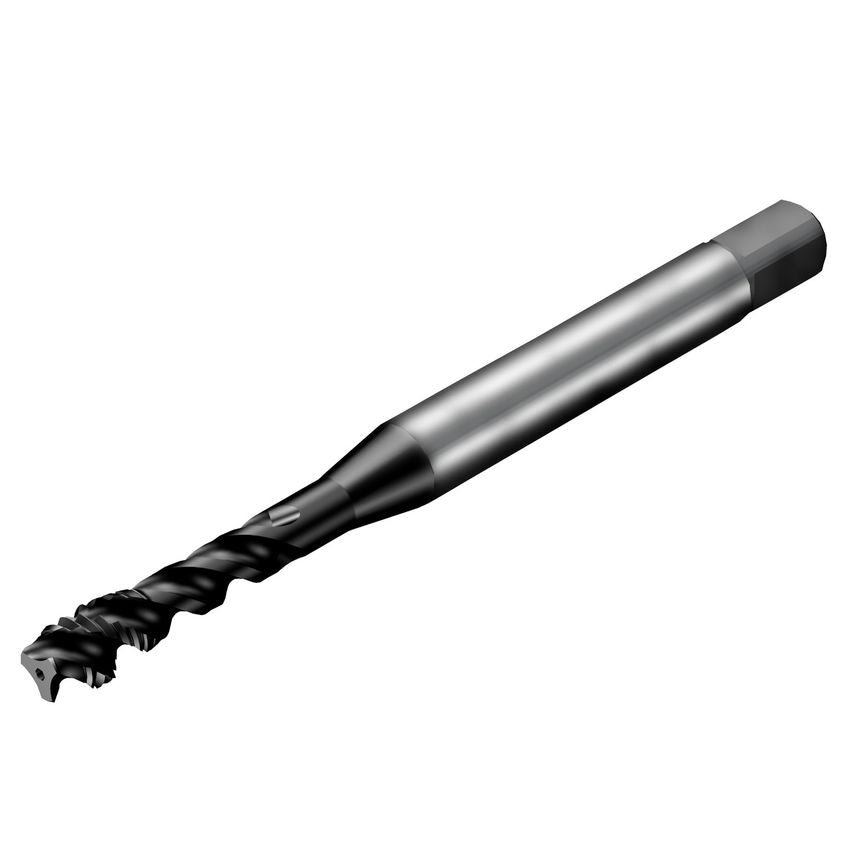

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| CoroPak | 14 |
| Thread Pitch | 1.25mm |
| Functional Length | 90mm |
| Coolant Entry Style | 1 |
| Grade | P1PM |
| Thread Diameter Size | M8 |
| Usable Length | 35mm |
| Basic Standard Group | DIN 371 |
| Coolant Exit Style | 1 |
| MFR Part No. | 8055826 |
| Blind Hole Function Property | Yes |
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Unit Measured | Metric |
| Connection Diameter | 14.5mm |
| Thread Tolerance Class | 6HX |
| Through Hole Function Property | Yes |
