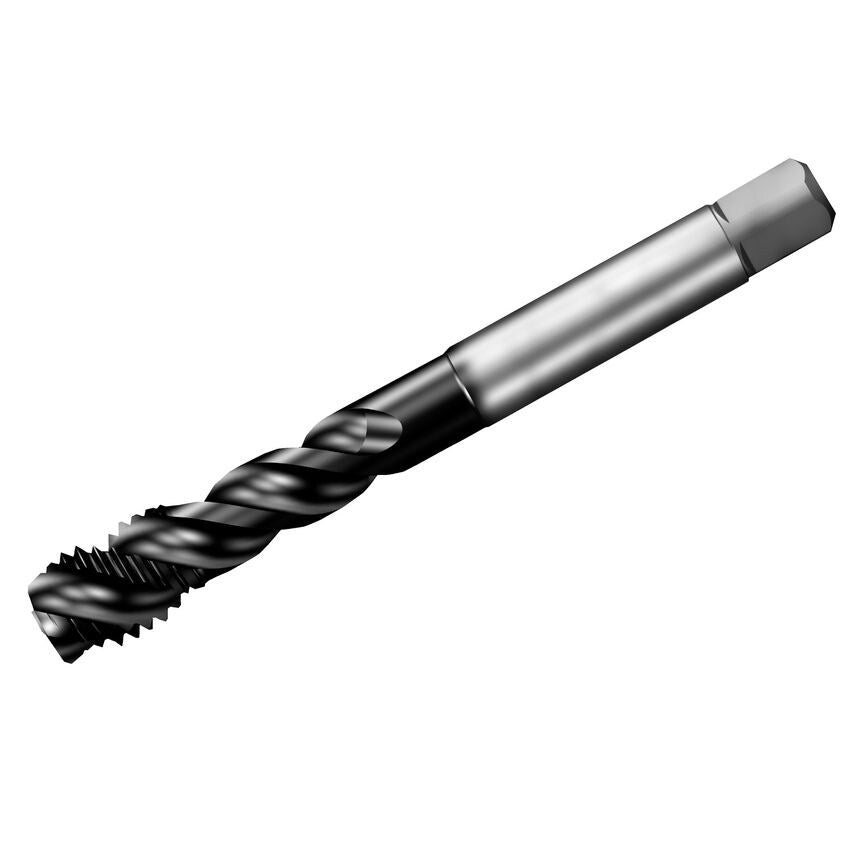

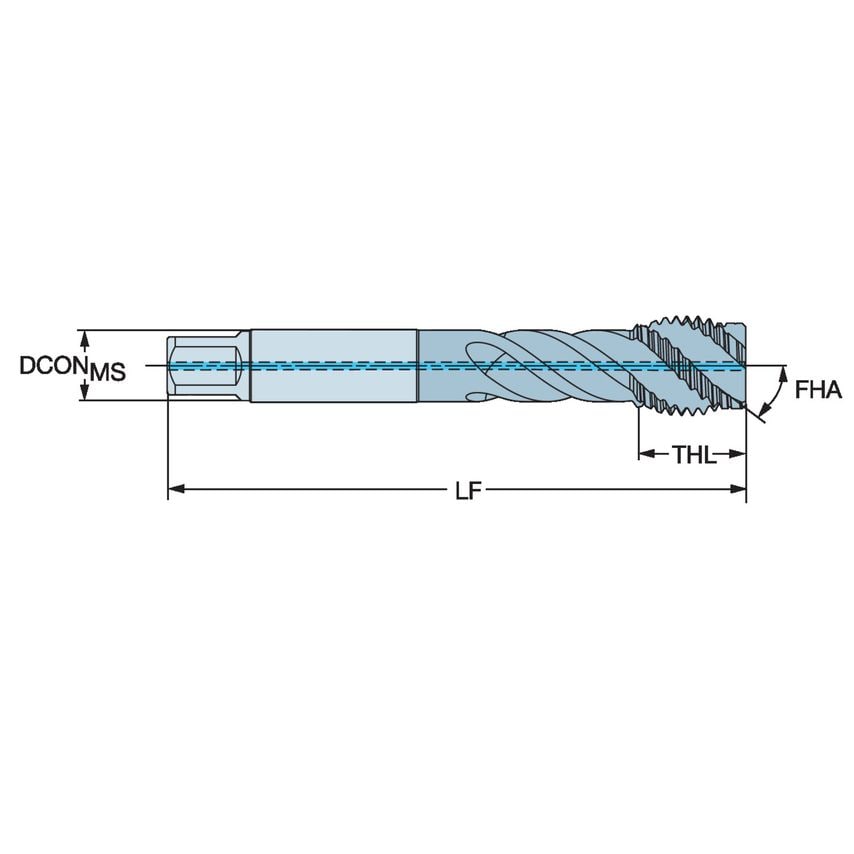

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coating Process Type | PVD |
| Connection Diameter | 63mm |
| Coolant Entry Style | 1 |
| Coolant Exit Style | 1 |
| Through Hole Function Property | Yes |
| Weight | 0.22kg |
| CoroPak | 14 |
| Functional Length | 140mm |
| MFR Part No. | 8055833 |
| Basic Standard Group | DIN 376 |
| Unit Measured | Metric |
| Coating Type | TiAlN |
| Grade | P1PM |
| Thread Diameter Size | M22 |
| Thread Tolerance Class | 6HX |
| Usable Length | 82mm |
| Blind Hole Function Property | Yes |
| Thread Pitch | 2.5mm |
