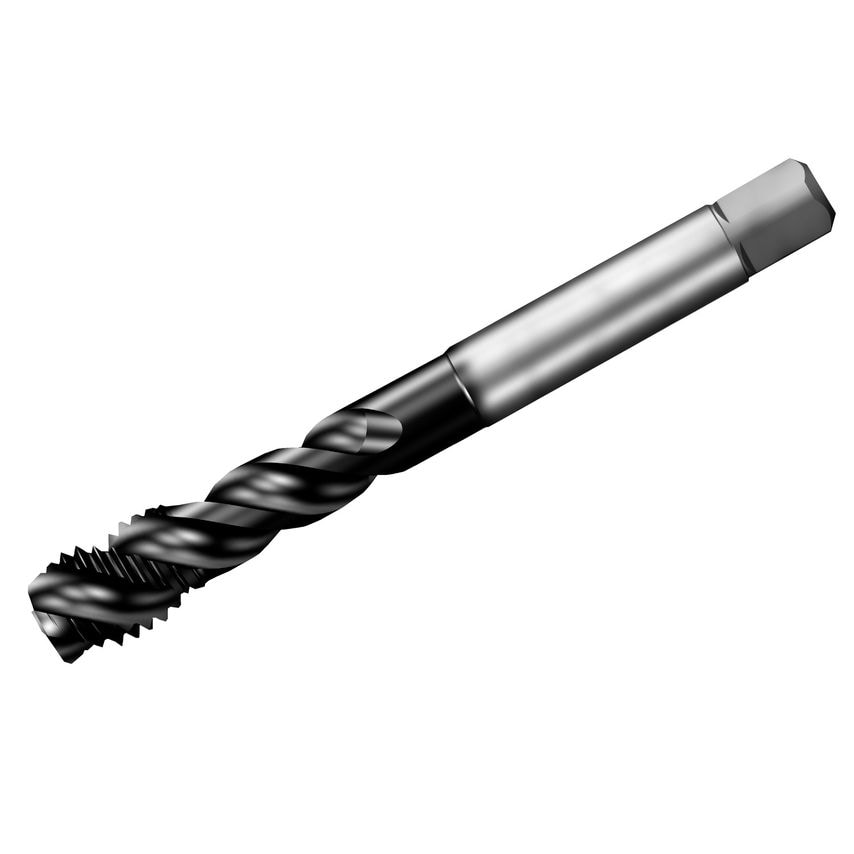

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coolant Entry Style | Without Coolant |
| Coating Type | TiAlN |
| Grade | P1PM |
| MFR Part No. | 8056248 |
| Coolant Exit Style | 0 |
| Basic Standard Group | DIN 374 |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Connection Diameter | 32mm |
| Thread Pitch | 1.5mm |
| Blind Hole Function Property | Yes |
| Functional Length | 100mm |
| Unit Measured | Metric |
| Usable Length | 50mm |
| Thread Diameter Size | MF14x1.5 |
| CoroPak | 15 |
| Thread Tolerance Class | 6HX |
