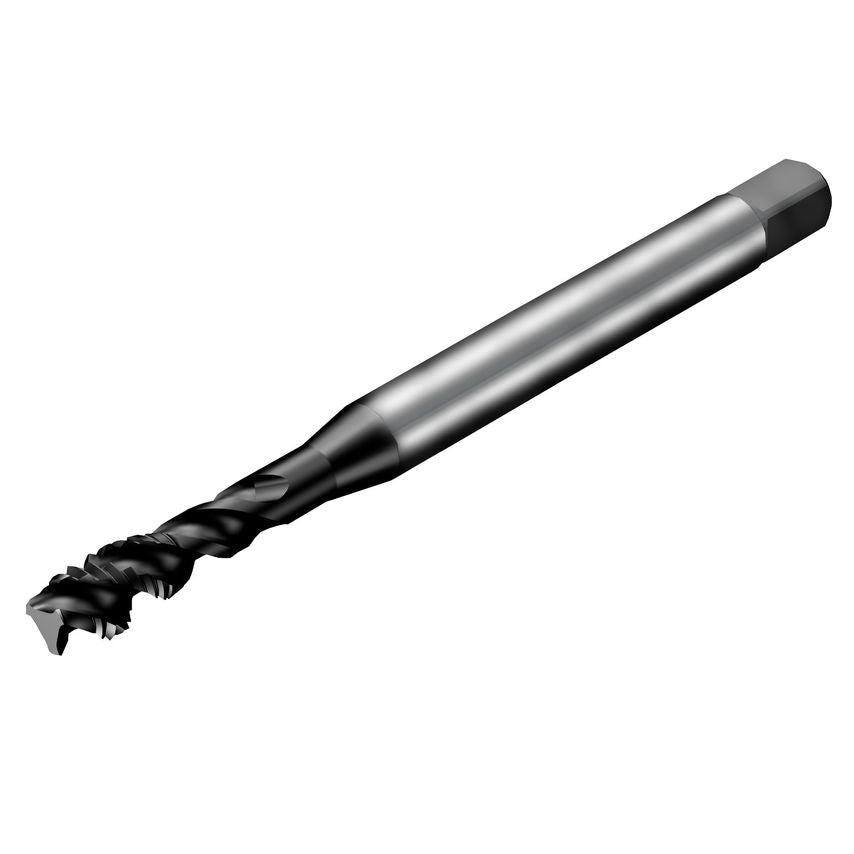

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coolant Exit Style | 0 |
| Thread Pitch | 0.79375mm |
| Grade | P1PM |
| Coolant Entry Style | Without Coolant |
| Blind Hole Function Property | Yes |
| Through Hole Function Property | Yes |
| Threads Per Inch | 32 |
| MFR Part No. | 8056267 |
| Connection Diameter | 31.75mm |
| Coating Type | TiAlN |
| CoroPak | 15 |
| Unit Measured | Metric |
| Functional Length | 63mm |
| Thread Tolerance Class | 2BX |
| Usable Length | 21mm |
| Basic Standard Group | DIN/ANSI |
| Thread Diameter Size | UNC#8-32 |
| Coating Process Type | PVD |
