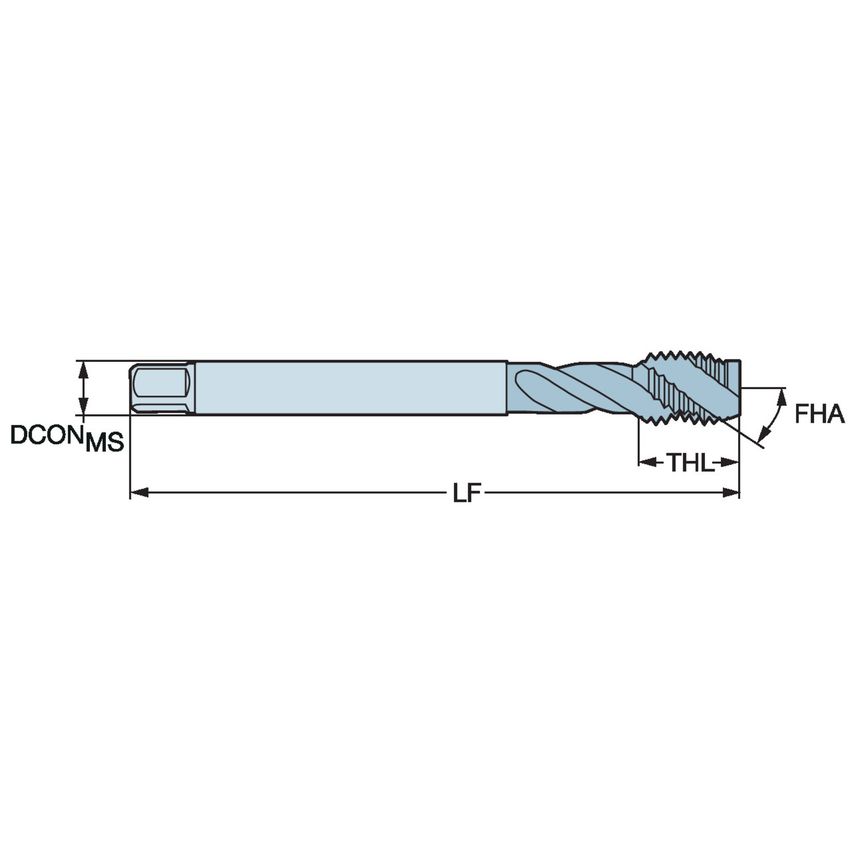

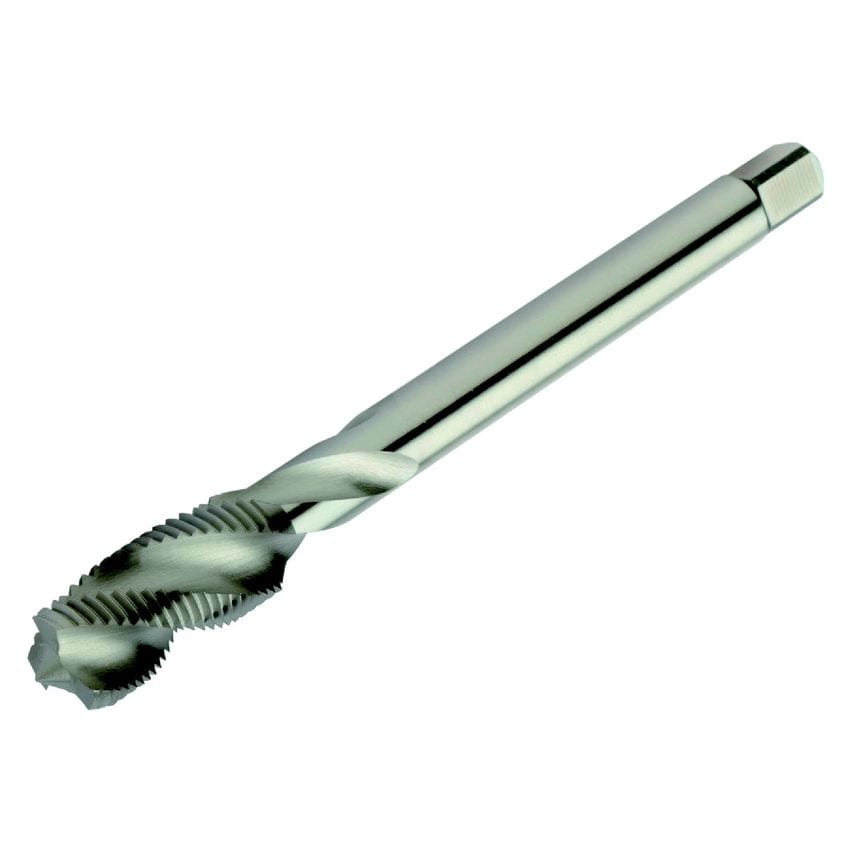

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coolant Exit Style | 0 |
| CoroPak | 180 |
| Usable Length | 73mm |
| Functional Length | 100mm |
| MFR Part No. | 7666339 |
| Thread Pitch | 1.25mm |
| Coating Type | Uncoated |
| Thread Diameter Size | MF 12x1.25 |
| Basic Standard Group | DIN 374 |
| Grade | B150 |
| Through Hole Function Property | Yes |
| Blind Hole Function Property | Yes |
| Connection Diameter | 6.8mm |
| Thread Tolerance Class | 6H |
| Unit Measured | Metric |
| Coating Process Type | UNCOAT |
| ISO Cutting Tool Material | HSS >=4 |
| Coolant Entry Style | Without Coolant |
