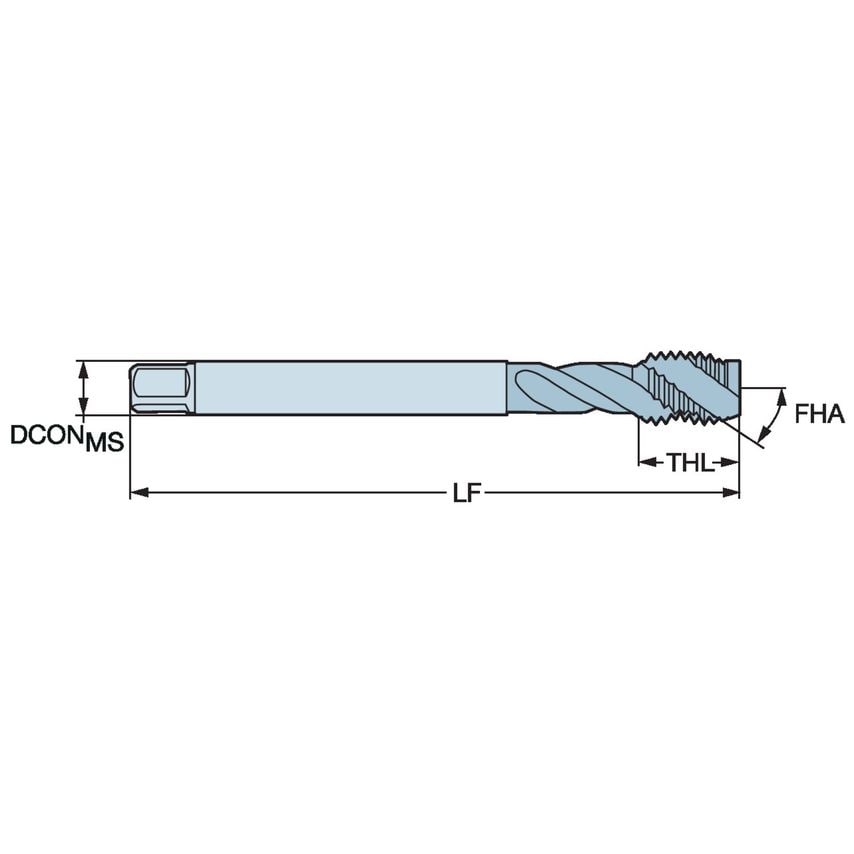

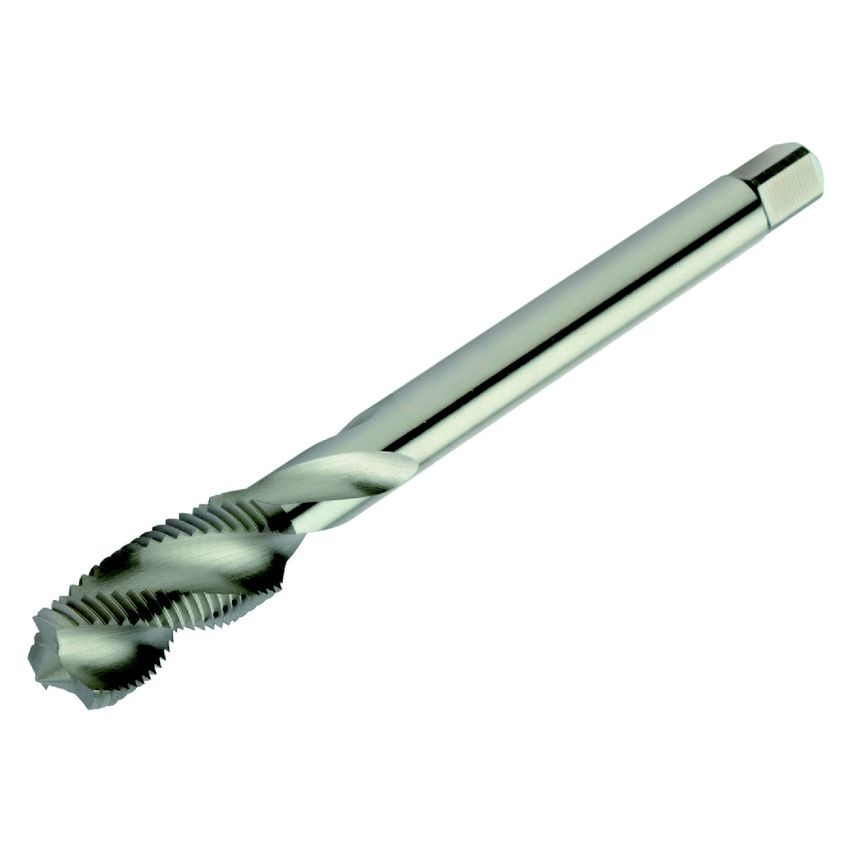

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Connection Diameter | 61.47mm |
| Blind Hole Function Property | Yes |
| ISO Cutting Tool Material | HSS >=4 |
| Coolant Entry Style | Without Coolant |
| Thread Diameter Size | MF 8x1 |
| Coating Process Type | UNCOAT |
| Functional Length | 90mm |
| Coolant Exit Style | 0 |
| CoroPak | 180 |
| Grade | B150 |
| Through Hole Function Property | Yes |
| MFR Part No. | 7666389 |
| Unit Measured | Metric |
| Basic Standard Group | DIN 374 |
| Coating Type | Uncoated |
| Thread Tolerance Class | 6H |
| Thread Pitch | 1mm |
| Usable Length | 67mm |
