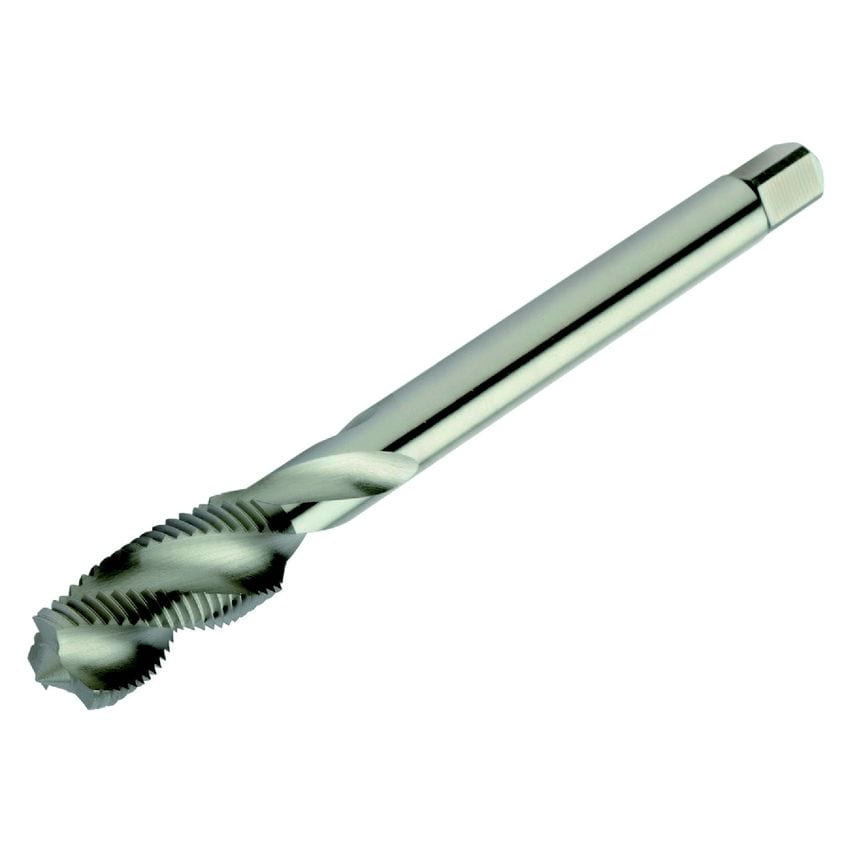

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole

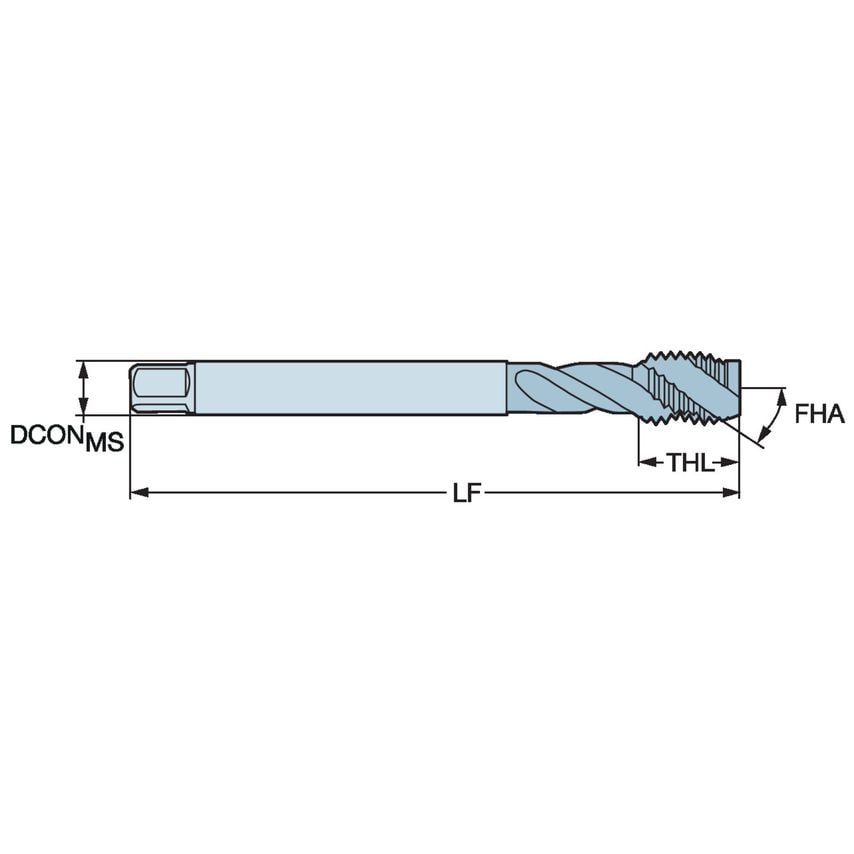

| Functional Length | 100mm |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Grade | B150 |
| Thread Diameter Size | MF 10x1.25 |
| Coating Type | Uncoated |
| Usable Length | 77mm |
| Coating Process Type | UNCOAT |
| Thread Pitch | 1.25mm |
| CoroPak | 180 |
| Coolant Entry Style | Without Coolant |
| Basic Standard Group | DIN 374 |
| MFR Part No. | 7666338 |
| ISO Cutting Tool Material | HSS >=4 |
| Thread Tolerance Class | 6H |
| Connection Diameter | 77.98mm |
| Blind Hole Function Property | Yes |
| Coolant Exit Style | 0 |
