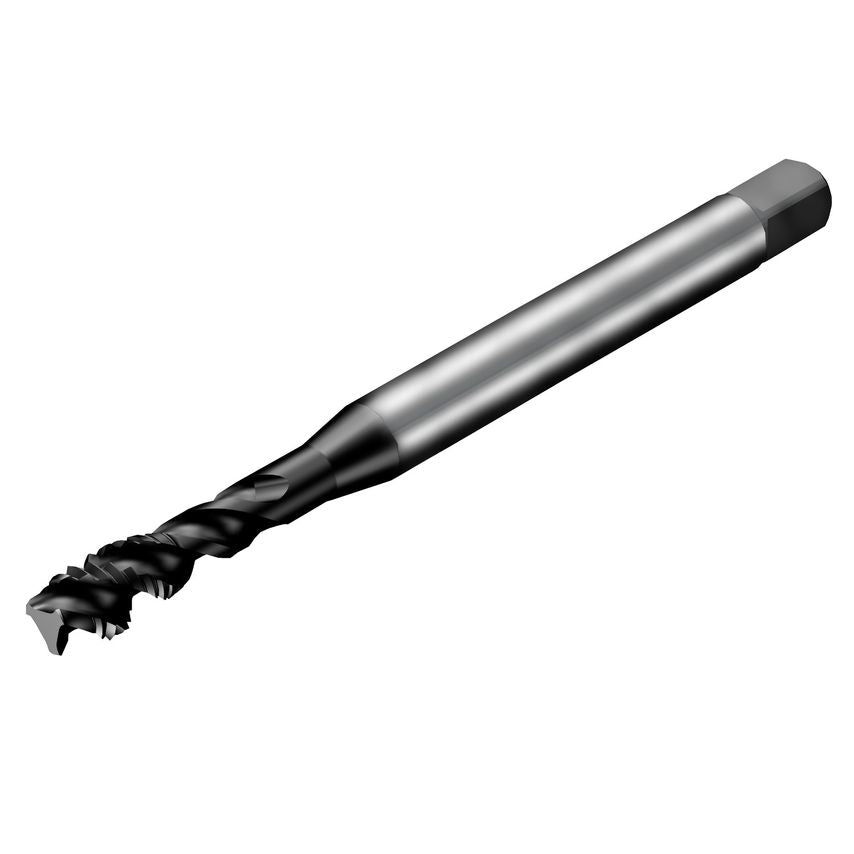

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Grade | P1PM |

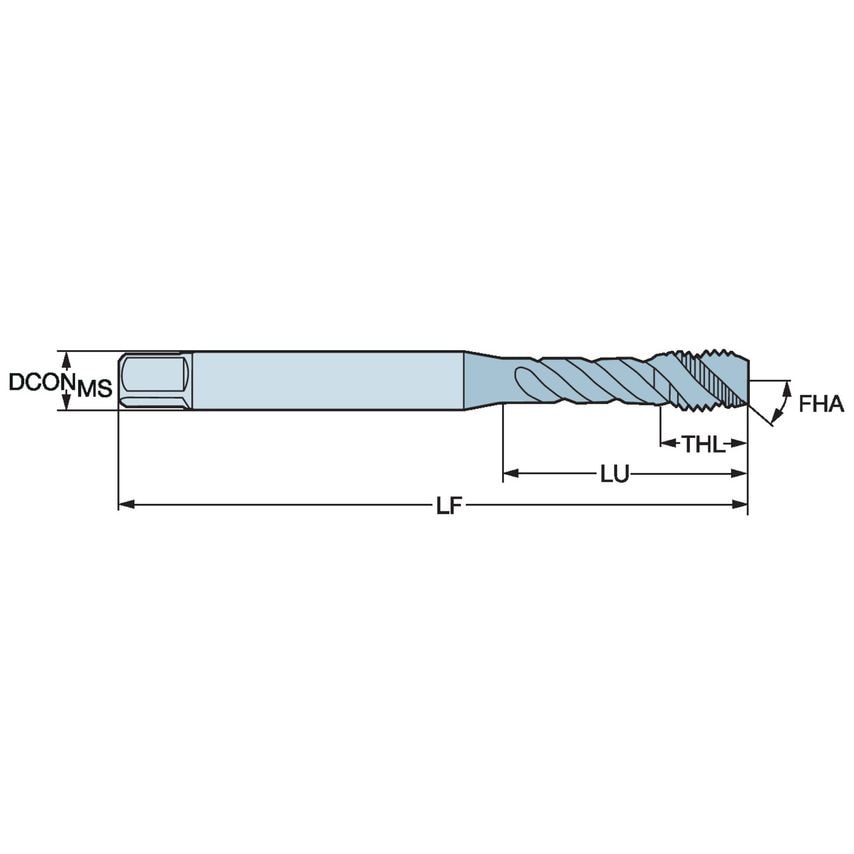

| Functional Length | 80mm |
| Thread Diameter Size | UNC1/4-20 |
| Thread Tolerance Class | 2BX |
| Coating Type | TiAlN |
| Basic Standard Group | DIN/ANSI |
| Unit Measured | Metric |
| Coating Process Type | PVD |
| Threads Per Inch | 20 |
| CoroPak | 15 |
| Thread Pitch | 1.27mm |
| Coolant Exit Style | 0 |
| Through Hole Function Property | Yes |
| Blind Hole Function Property | Yes |
| Usable Length | 25mm |
| Connection Diameter | 25.4mm |
| MFR Part No. | 8056270 |
| Coolant Entry Style | Without Coolant |
