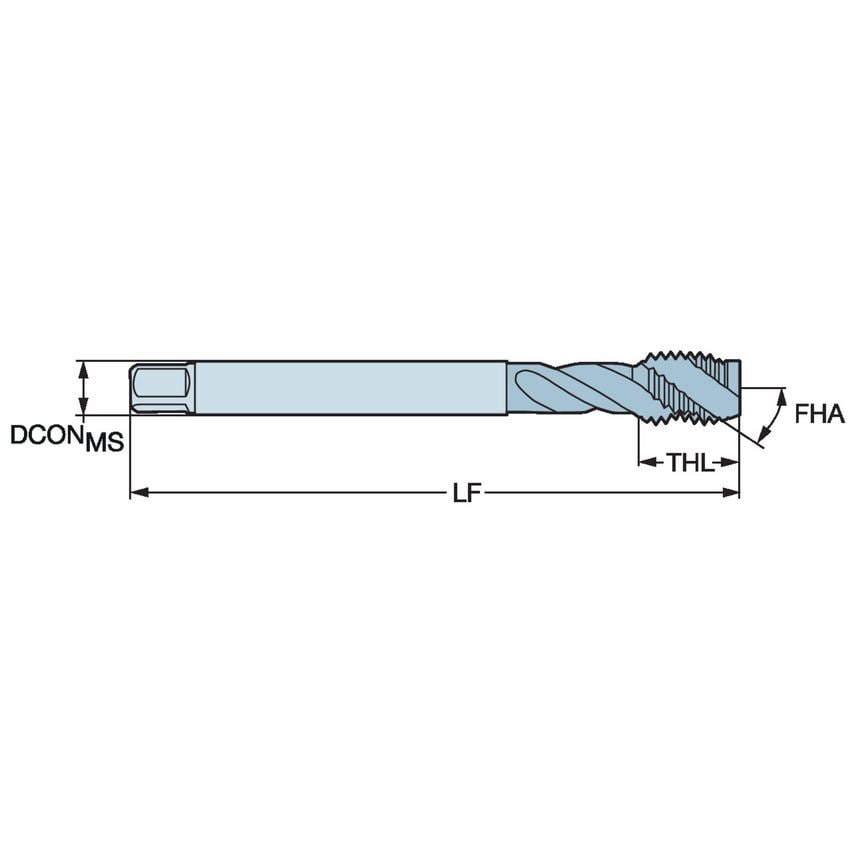

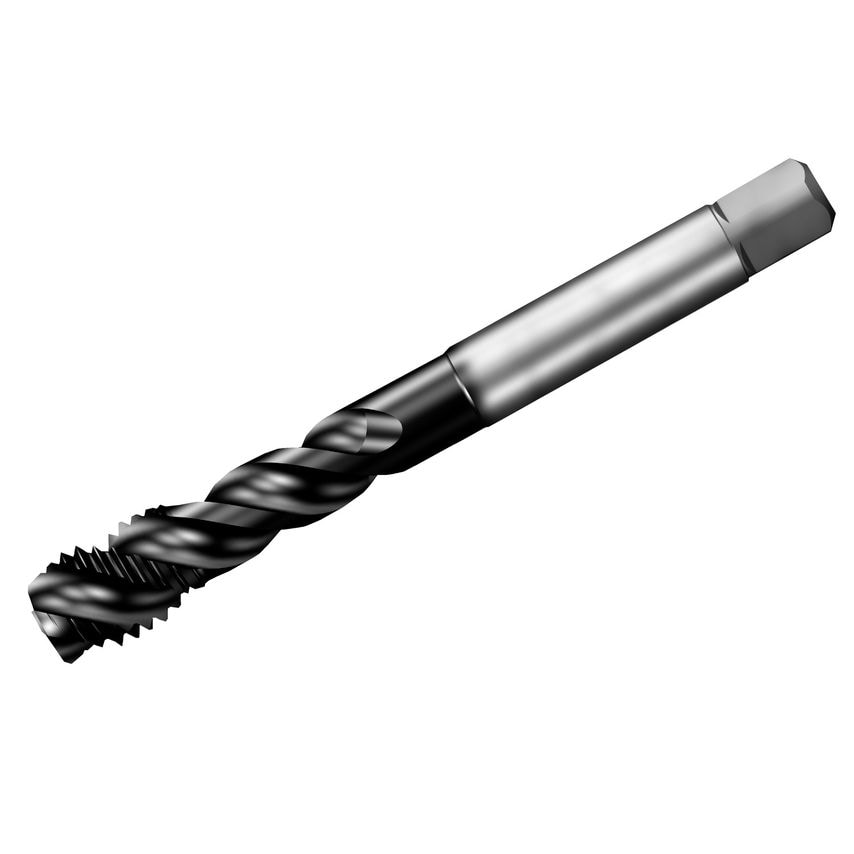

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Thread Pitch | 2.54mm |
| Through Hole Function Property | Yes |
| CoroPak | 16 |
| Threads Per Inch | 10 |
| Grade | P1PM |
| Unit Measured | Metric |
| Coolant Exit Style | 0 |
| MFR Part No. | 8056281 |
| Coating Type | TiAlN |
| Blind Hole Function Property | Yes |
| Thread Diameter Size | UNC3/4-10 |
| Coolant Entry Style | Without Coolant |
| Functional Length | 125mm |
| Usable Length | 72mm |
| Coating Process Type | PVD |
| Basic Standard Group | DIN/ANSI |
| Thread Tolerance Class | 2BX |
| Connection Diameter | 24.2mm |
