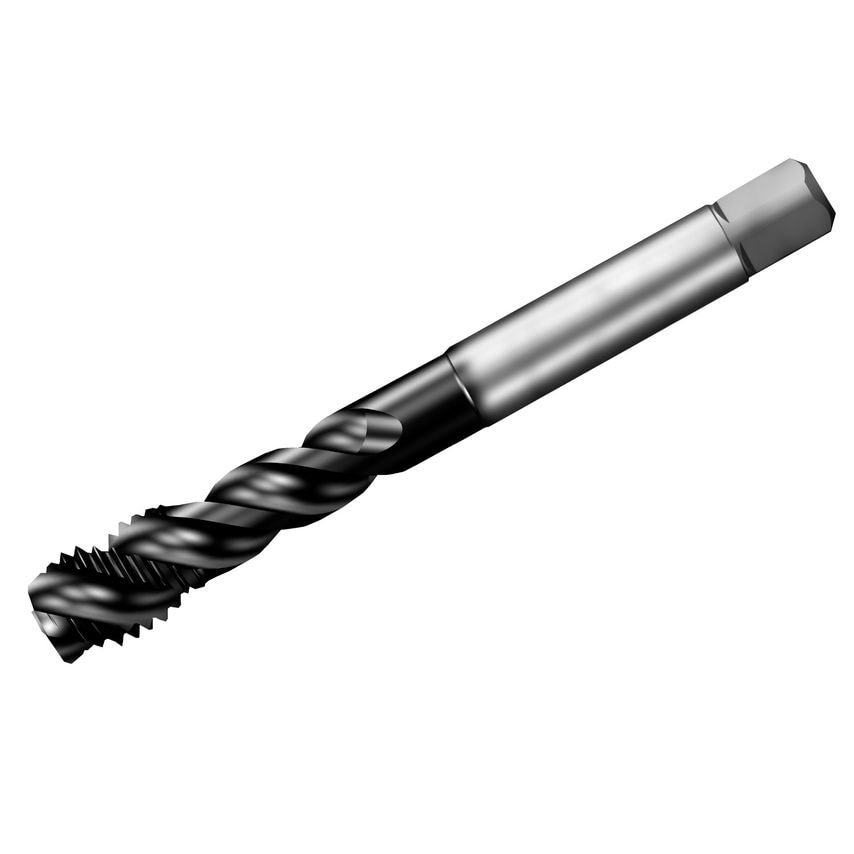

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Basic Standard Group | JIS-B-4430 |
| Coating Type | TiAlN |
| Through Hole Function Property | Yes |
| Coolant Exit Style | 0 |
| CoroPak | 17 |
| Coolant Entry Style | Without Coolant |
| Thread Pitch | 2.5mm |
| Functional Length | 100mm |
| Unit Measured | Metric |
| Weight | 0.1kg |
| Blind Hole Function Property | Yes |
| Grade | P1PM |
| Connection Diameter | 40mm |
| Coating Process Type | PVD |
| Usable Length | 56mm |
| Thread Diameter Size | M18 |
| MFR Part No. | 8056596 |
| Thread Tolerance Class | 6HX |
